Developer’s Description

By VirtualBreadboard

Virtual Breadboard (VBB) is a design and learning tool for creating intelligent electronic applications.

Virtual Breadboard specializes in microcontroller electronic applications driven by the Arduino compatible DUO. The DUO microcontroller module for the Arduino UNO has both an AVR processor for 100% compatible use with Arduino C/C++ applications and a low-power Java enabled microcontroller for extended multi-core applications using the Arduino java compatible language.

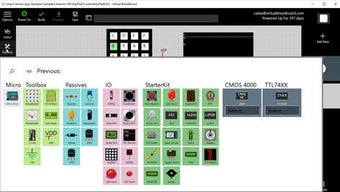

Applications are dragged-and-dropped together using the growing collection of virtualizable components

** DUO **

MultiCore module ATMega 328 Instruction set simulator and Java emulator support

** IO **

Serial LCD, Mini Terminal, Rotary POT, Slide POT, KeyPad, PushButton, DIPN , LEDN

**Starter Kit Component Collection**

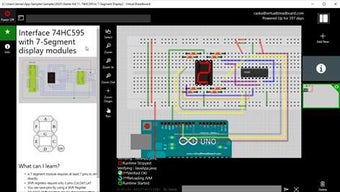

Includes Starter Kit components Push Button, LED 5mm, Segment7, POT, R.G.B LED, 555, 74HC595, L293D, DC Motor, Rotary Encoder, Servo, Stepper, Propeller, Toggle Switch, 1602 LCD, 8x8 Dot Matrix and Buzzer!

** Libraries **

CMOS 4000 - Library of over 70 virtualizable components from the popular CMOS 4000 family.

TTL74XX - Library of over 20 virtualizable components from the popular TTL74XX family.

Generic DIP - Footprints for hundreds of DIP Integrated Circuits

Fritzing - Import Breadboard/Schematics from the thousands of Frizting components
