Editors’ Review

Download.com staff
This software suite provides tools for measuring the performance parameters of CCTV components. It analyzes cameras, lenses, filters, and light sources to obtain precise data for system modeling.

Top Recommended Alternative

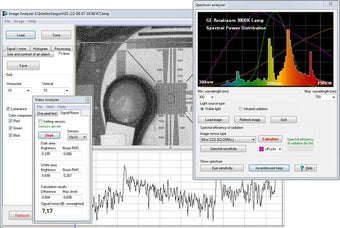

Enlarged image for CCTVCAD Lab Toolkit
CCTVCAD Lab Toolkit 0/1

  • Pros

    • Measures camera sensitivity, resolution, and exposure time
    • Measures optical transmission and resolution of lenses and filters
    • Analyzes live video for frame rate and signal-to-noise ratio
    • Measures spectral efficiency of visible and infrared light sources
    • Measures rolling shutter row time on CMOS sensors

  • Cons

    • Requires external illumination meter for infrared power measurement
    • Requires oscilloscope for rolling shutter measurement
    • Requires low-frequency oscillator for rolling shutter measurement
Icon of program: CCTVCAD Lab Toolkit

CCTVCAD Lab Toolkit for Windows

Download now

Used CCTVCAD Lab Toolkit for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows Vista
  • Windows 2000
  • Windows 7
  • Windows XP
  • Windows 10
Additional Requirements
None
POPULARITY
Total Downloads
141
Downloads Last Week
1
Report Software

Program available in other languages

Last Updated

Developer’s Description

By CCTVCAD Software
Measure parameters of various CCTV equipment.
CCTVCAD Lab Toolkit - is a collection of software tools for measuring parameters of various CCTV equipment (cameras, lenses, filters, light sources and other). Using CCTVCAD Lab Toolkit you can: Measure sensitivity and resolution of real video cameras, optical transmission and resolution of lenses and filters, infrared light power in order to obtain precise parameters for modeling (illumination meter is additionally required). Measure exposure time and threshold illumination of IP cameras. Measure rolling shutter row time of IP cameras with CMOS sensor (oscilloscope and low-frequency oscillator are additionally required). Analyze real video images and live video on the computer monitor. Measure frame rate, signal-to-noise ratio and other parameters. Analyze separate lines of image, measure object/background contrast. Determine from the Spectral Power Distribution curves and measure in practice the Spectral efficiency of visible and infrared light sources for the different image sensors. Independent measuring parameters of CCTV equipment is necessary for proper designing and modeling in VideoCAD because commonly manufacturer's specifications have not enough parameters or parameter's values are uncertain.
