Highly versatile and easy to use, PowerStar was designed for use on most electrical design and analysis applications. Use it for commercial building services, industrial plants, distribution systems, power factor correction. Any project where you need to know voltage, current, kw, kva or kvar on any and all parts of the circuit.
Save time on circuit calculation, most especially laborious combinations of line to neutral, line to line and unbalanced three phase calculations as well as wye to delta current and voltage transformations where transformers are involved.
A list of some of the capabilities of PowerStar:
Complete device information includes node voltages, voltage drops, current, kW, kVA and kVAr flow.
Evaluate the effects of disconnected devices and branches on the rest of the circuit.
Calculate three-phase, line to neutral and line to line load flow.
Click on symbol to display or edit device rating and other properties.
Mouseover any symbol to display electrical data.
Highlight devices with overcurrent, kVA/kW overload, over/undervoltage.
Print or plot to any Windows compatible printer or plotter.
Cut, copy and paste devices and circuit sections to the Windows clipboard.

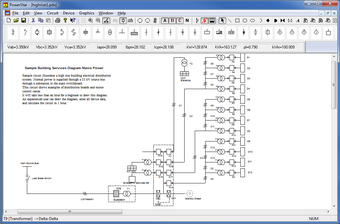

Use graphics to annotate and add legends, title blocks, logos to the single line diagram.
What's new in version 3.10
new data tip window for instant information display. Simply hover the
mouse cursor on any part of the circuit to display electrical and device
tool tip implementation provides information on the functions of toolbar
buttons. Also shows symbol's device class and name on the symbols bar.
Use of "what's this ?" pointer on data forms to provide description of
data entry fields.
symbol labels can now be moved simply by dragging them to the desired
