Tracfoil is a specialized tool for designing and printing precise rib and airfoil templates. It allows users to modify camber, generate tapered rib sets, and export designs to DXF for advanced aircraft modeling.

Top Recommended Alternative

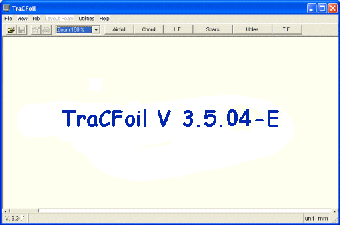

Enlarged image for Tracfoil
Tracfoil 0/1

  • Pros

    • Generates full sets of ribs for straight tapered wings
    • Supports DXF file export for integration with CAD software
    • Configures up to twelve rectangular or round spars and holes
    • Draws station lines and washout for foam cutting templates
    • Includes tools for comparing two airfoils and modifying camber

  • Cons

    • Maximum limit of twelve spars and twelve holes per airfoil
    • Rib generation is limited to straight taper designs
    • Requires external coordinate data to edit and print templates
    • No integrated 3D visualization or rendering features
    • Lacks automated structural stress or aerodynamic analysis tools
Icon of program: Tracfoil

Tracfoil for Windows

Download now

Used Tracfoil for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
4.2
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 2003
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 98
  • Windows 2000
  • Windows ME
  • Windows NT
  • Windows 10
Additional Requirements
None
POPULARITY
Total Downloads
536
Downloads Last Week
1
Report Software

Program available in other languages

Last Updated

User Reviews

1/5

1 User Votes

Developer’s Description

By J.C. Etiemble
Edit and print your ribs and airfoils templates from data.
Tracfoil features include where it can draw shetting thickness, Leading Edge (V-notch square stock), Trailing Edge.Build 12 spars rectangular or rond (location in unit's ou % from L.E or T.E, at position under airfoil, under sheeting).Build 12 holes rectangular or rond (location in unit's ou % from L.E or T.E,). Draw station lines and washout for template foam cutting. Compare 2 airfoils. Generate full set of ribs in straight taper, and save ribs on you disk. Modify airfoil thickness and camber, Rib Oblique, compute the dihedral, create new coordinates file. Print the airfoil with different colors and style and export the Airfoil on a DXF file and save and open the different airfoil components.
