Key Details of SyncGen

  • The SyncGen app is a hard panel simulation of a synchroscope, generator breaker, turbine with speed control, voltage regulator, and turbine trip...
  • Last updated on June 8, 2016
  • There have been 8 updates
  • Virus scan status:

    Clean (it's extremely likely that this software program is clean)

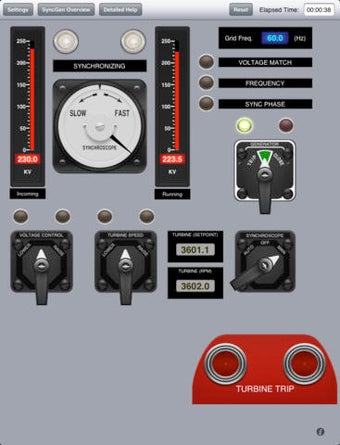

Enlarged image for SyncGen
SyncGen 0/1

Developer's Description

The SyncGen app is a hard panel simulation of a synchroscope, generator breaker, turbine with speed control, voltage regulator, and turbine trip...
The SyncGen app is a hard panel simulation of a synchroscope, generator breaker, turbine with speed control, voltage regulator, and turbine trip push buttons. It contains a realistic dynamic turbine speed simulation and is configurable to match various power plant settings throughout the world.A synchroscope is typically used to synchronize a power station generator to a distribution grid. The goal is to close the generator breaker while the voltage, phase angle, and frequency of the generator are matched to the power distribution grid. This training app can be used to demonstrate the sychronization process for power plant personnel and contains brief system descriptions and embedded help to facilitate self-study. SyncGen is intended for power plant personnel, utility grid students or other individuals seeking to gain a fundamental understanding of power plant turbine/generator operation.Configuration options include: grid frequency, grid voltage (0-750 KV), initial turbine RPM, maximum voltage delta, maximum speed delta (RPM), and maximum phase delta (+/- degrees). Optionally, the ability to allow synchronization in the "slow" direction can be enabled. There are three time constants to help match response times of the voltage regulator, the turbine control, and the turbine trip speed simulation.PLEASE NOTE:**SyncGen is not a game.** It is a photo-realistic simulation used to demonstrate real world power plant theory in action.


Explore More


Full Specifications

GENERAL
Release
June 11, 2013
Latest update
June 8, 2016
Version
1.0.1
OPERATING SYSTEMS
Platform
iOS
Operating System
iOS 12.1.2
Additional Requirements
Compatible with: ipad2wifi, ipad23g, ipadthirdgen, ipadthirdgen4g, ipadfourthgen, ipadfourthgen4g, ipadmini, ipadmini4g, ipad2wifi, ipad23g, ipadthirdgen, ipadthirdgen4g, ipadfourthgen, ipadfourthgen4g, ipadmini, ipadmini4g
POPULARITY
Total Downloads
1
Downloads Last Week
0
