Editors’ Review

Download.com staff
The Aimagin RapidSTM32 Blockset enables users to create embedded control boards without low-level programming. It integrates real-time data, controls hardware, and performs HIL simulations directly from MATLAB/Simulink models.

Top Recommended Alternative

Enlarged image for RapidSTM32 Blockset
RapidSTM32 Blockset 0/1

  • Pros

    • Eliminates low-level C code for embedded system development.
    • Integrates real-time sensor data into Matlab/Simulink.
    • Controls external hardware directly from Matlab/Simulink.
    • Converts Matlab/Simulink models to ARM Cortex-M3 embedded systems.

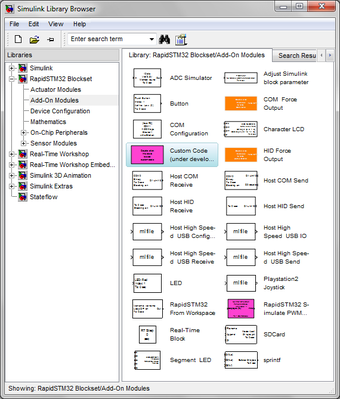

    • Includes Simulink blocks for common embedded add-on hardware modules.

  • Cons

    • Requires full standard Matlab tool suite licenses for operation.
    • Limited to ARM Cortex-M3 (STM32) core embedded system targets.
    • No mentioned capability for integrating custom low-level C code.
Icon of program: RapidSTM32 Blockset

RapidSTM32 Blockset for Windows

Download now

Used RapidSTM32 Blockset for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
0.3.6.8beta
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 7
  • Windows Server
  • Windows 98
  • Windows ME
  • Windows 2003
  • Windows XP
  • Windows NT
  • Windows 10
  • Windows Vista
  • Windows 2000
Additional Requirements
Matlab 2009a, Simulink, Real-Time Workshop, Real-Time Workshop Embedded Coder.
POPULARITY
Total Downloads
2,026
Downloads Last Week
1
Report Software

Program available in other languages

Last Updated

Developer’s Description

By Aimagin
Create an electronic control board without the need of writing a program for it.
FiO boards and RapidSTM32 Blockset is for anyone who needs to make use of an embedded system, a kind of a miniature computer on a single piece of Printed Circuit Board (PCB), but don't know how to or do not want to write a low-level program for it.Basically, the tool suite allows users to do one of the following tasks very easily:1. Bring in real-time data from any kind of sensors into Matlab/Simulink.2. Control external hardware from Matlab/Simulink.3. Perform open-loop and closed-loop hardware in the loop (HIL) simulation.4. Create an intelligent embedded system for any kind of stand alone applications such as - a data logger system, Automatic/Intelligent/Automation control system, Signal processing systemRapidSTM32 Blockset can convert a Matlab / Simulink model to a working ARM Cortex - M3 core (STM32) embedded system in just a few mouse clicks. All that is needed include standard Matlab tool suite (Matlab/Simulink/Real-Time Workshop/Real-Time Workshop Embedded Coder), RapidSTM32 Blockset, and FiO evaluation board. There is no need to write a single line of low-level C code.RapidSTM32 Blockset also offers several Simulink blocks that simulate and generate code for most commonly-used embedded system add-on hardware modules such as 7/14/16 segments LED, character LCD, GPS NMEA parser module, SD card module etc.For students and lecturers in Automatic Control System, Mechatronics, and DSP courses, RapidSTM32 Blockset offers students opportunities to learn about Rapid Prototyping and Model-based design using affordable hardware, to focus on the core concept and theories not low-level debugging, and, finally, apply in building their senior-year projects.Academic users of the tool suite have found that:1. It allows students to explore and test core concepts and theories very fast (rapid prototyping).2. The blockset is very easy to use.3. Low-cost.4. Visual Simulink Block Diagram approach increases learning efficiencies, students can see, follow, and explain the working of a system from a high-level overall system architecture.
