PowerNet performs electrical design and comprehensive analysis of power distribution systems for commercial and industrial use. It calculates load flow, complex faults, and key metrics like voltage, current, kW, kVA, and kVAr flow in DC or three-phase circuits.

Top Recommended Alternative

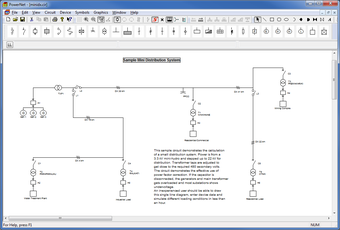

Enlarged image for PowerNet Circuit Analyzer
PowerNet Circuit Analyzer 0/1

  • Pros

    • Calculate DC, single phase, or three phase circuits.
    • Performs comprehensive load flow and detailed fault calculations.
    • Analyzes system effects of disconnected branches and devices.
    • Graphical display of voltage and current vector data.
    • Highlights devices experiencing overcurrent or over/undervoltage.

  • Cons

    • Compatibility restricted to Windows operating systems.
    • Lacks explicit support for BIM or external CAD integration.
    • No listed cloud synchronization or collaboration features.
    • No mentioned support for harmonic analysis capabilities.
    • Does not detail integration with external component databases.
Icon of program: PowerNet Circuit Analyzer

PowerNet Circuit Analyzer for Windows

Download now

Used PowerNet Circuit Analyzer for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
2.2
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 7
  • Windows 10
  • Windows Vista
  • Windows XP
Additional Requirements
None
POPULARITY
Total Downloads
568
Downloads Last Week
17
Report Software

Program available in other languages

Last Updated

Developer’s Description

By Megasys Software
Perform electrical design and analysis of power distribution systems.
Highly versatile and easy to use, PowerNet was designed for use on most electrical design and analysis applications. Use it for commercial building services, industrial plants, distribution systems, power factor correction. Any project where you need to know voltage, current, kw, kva or kvar on any and all parts of the circuit. Save time on load flow calculations and line to neutral , line to line and 3-phase faults.A list of some of the capabilities of PowerNet * Calculate DC, single phase or three phase circuits. * Complete device information includes node voltages, voltage drops, current, kW, kVA and kVAr flow. * Evaluate the effects of disconnected devices and branches on the rest of the circuit. * Calculate three-phase, line to ground, line to line and double line to ground fault. Include motor contribution to fault. Show earth current, fault R/X ratio, RMS and peak fault current. * Single click display of device rating and electrical data. Graphical display of voltage and current vectors. * Create or modify set of device symbols. * Highlight devices with overcurrent, kVA/kW overload, over/undervoltage. * Print or plot to any Windows compatible printer or plotter. * Cut, copy and paste devices and circuit sections to the Windows clipboard. * Use graphics to annotate and add legends, title blocks, logos to the single line diagram.
