Editors’ Review

Download.com staff
ExPCBHelper is a macro program for ExpressPCB, enabling designers to create custom shapes, logos, and import bitmap and DXF files for advanced component design.

Top Recommended Alternative

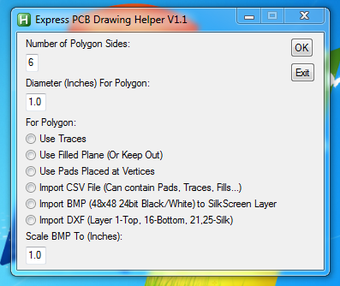

Enlarged image for ExPCB Helper
ExPCB Helper 0/1

  • Pros

    • Draws polygons up to 20 sides, including stars.
    • Supports shapes on Silk, Bottom, or Top layers.
    • Imports CSV data for pad, trace, and plane placement.
    • Automates new component design processes.
    • Imports 48x48 pixel black and white BMP files.

  • Cons

    • BMP import restricted to 24-bit, black and white only.
    • DXF import layers are predefined for specific outputs.
Icon of program: ExPCB Helper

ExPCB Helper for Windows

Download now

Used ExPCB Helper for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.3
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 10
  • Windows XP
  • Windows 7
Additional Requirements
None
POPULARITY
Total Downloads
462
Downloads Last Week
13
Report Software

Program available in other languages

Last Updated

Developer’s Description

By LJB Engineering
Draw shapes and import BMP files and DXF files into ExpressPCB PC board design software.
ExPCBHelper is a key macro program designed to help a circuit board designer create interesting shapes and logos on a pc board design. Functional Highlights: Draw a N sided Polygon (up to 20 sides); Draw a Star (if 5 sides are chosen); Use Traces, Filled planes or Pads to create the desired shape; Shapes can be on the Silk , Bottom or Top layer; Import a CSV file that has all the location data for pads, traces and filled planes; Automate new component design; Import a small Bit Map (.BMP) file. The file must be 48 pixels by 48 pixels, saved as a 24 bit BMP file and only have Black and White pixels. The Black pixels will be drawn on the Silk Screen layer only. V 1.1 Supports DXF import. Layer 1 of the DXF file is imported to the Top Copper. Layer 2 is the bottom copper and layers 21 and 25 are the silk screen layer.
