Developer's Description

By Cafm
Oil & Gas Training Tool.

This is a project for Drilling and Well Control optimized for newer iPhones and iPads (iPhone 8 Plus, iPhone XR, XS, XS Max, iPad Pro 10.5-inch, 11-inch and 12.9-inch).

This is a basic drilling simulator that simulates drilling operations based in panels for kick detection, shut-in the well, stabilization of pressures and the choke operations during the well control operations using a hydraulic choke panel simulator.

Difference between our drilling simulators apps:

DRILLING SIMULATOR 1 - independent versions for iPhone and iPad (drilling, kick detection, shut-in, pressures stabilization, 1 single bubble, NO CONTROL)

DRILLING SIMULATOR 2 - designed for both iPhone and iPad (drilling, kick detection, shut-in, pressures stabilization, 1 single bubble, DIRECTIONAL/HORIZONTAL WELL, WELL CONTROL ON CHOKE PANEL WITH 1 REMOTE CHOKE)

DRILLING SIMULATOR 3 (drilling, kick detection, shut-in, pressures stabilization, MULTIPLE KICKS (3 SINGLE BUBBLES), DIRECTIONAL/HORIZONTAL WELL, WELL CONTROL ON CHOKE PANEL WITH 2 REMOTE CHOKES, STANDPIPE MANIFOLD, CHOKE MANIFOLD, FLOAT VALVE, GESTURE SWAIPE UP/DOWN TO MOVE DRILLSTRING, FAILURES SCHEDULE WITH RANDOM OPTION (Mud Pumps 1 and 2 power end failure or fluid end failure, Chokes 1 and 2 plugged or washout, One Drill Bit Nozzle plugged or lost and Drill String washout or leaded) AND SET KICK WITHOUT DRILLING NEED.

Additional features:

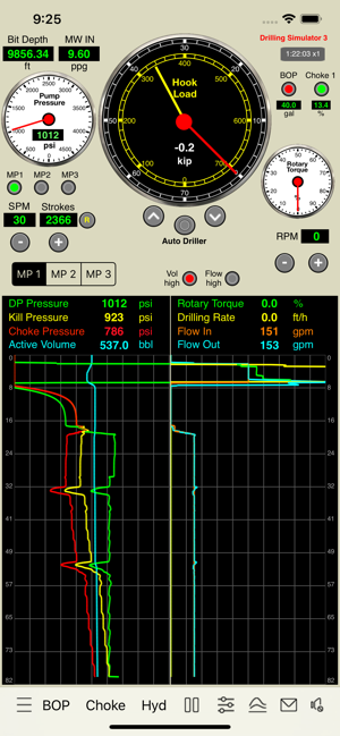

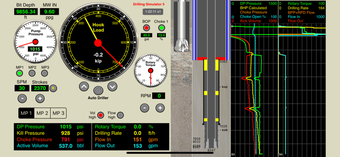

1. Driller Interface based on Pressure Gauge, Weight Indicator, Rotary Torque gauge and Geolograph.

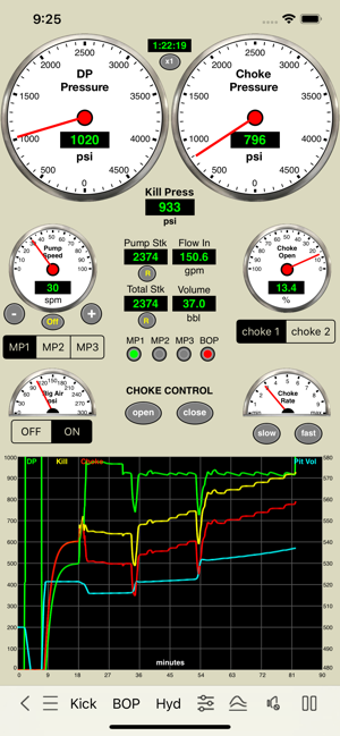

2. Choke Interface based on Hydraulic Choke Panel.

3. Graph in full screen (with background color in black or white) for analysis.

iPad version:

1. Pre-recorded data view

2. Screen layout optimized for 12.9-inch iPad Pro (High Resolution)

3. Three codes (admin, instructor, student) to view the gas into the borehole, the pressure at bottom, at shoe and at bop and to enable / disable the Lag Time (by adjusting the choke to change the kill pressure and drill pipe pressure, etc).

4. Use the arrow keys on keyboard for iPad Pro to operate the choke.

iPhone version:

1. Pre-recorded data available in the well configuration views.

2. Screen layout optimized for iPhone Plus, iPhone X and iPad Pro (High Resolution)

3. All features available without codes.

Other features also available:

A graphical very useful tool for training of roughnecks, derrickman, drillers, toolpusher, drilling engineers and students in the well control procedures.

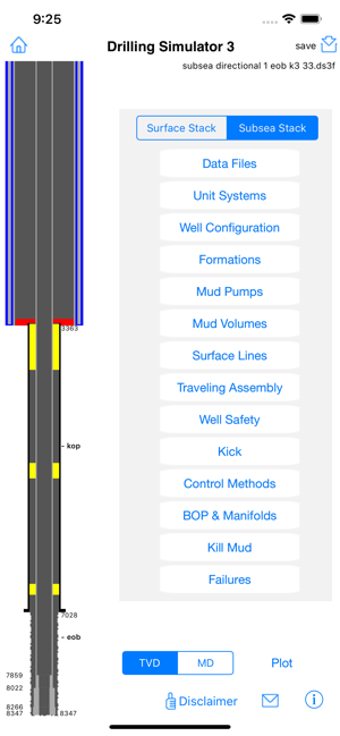

- Well config, drilling, kick detection, shut-in and control.

- Interactive system: no pre-set methods;

- Ability to apply control methods: Driller's method, wait and weight, dynamic volumetric and static volumetric (lubricate and bleed);

- Hydraulics and Hydrostatics;

- Behavior of the kick (single bubble);

- Applied with subsea stack or surface stack;

- Set well with until 4 sections: riser, casing, liner, open hole ;

- Set Drill String with drill pipe1, drill pipe2, heavy weight, drill collar1, drill collar2

- Support for horizontal and directional wells (builder and plotter)

- Bop flow meter (volume to close and to open bop)

Others apps available on our portfolio that may be useful for you:

- Drilling Hydraulics

- Kick Tolerance

- Leak-Off Test Simulator

- Leak-Off Test Analyzer

- Well Control Methods

- Well Control Worksheets

These tools can complement (work with) this simulator by creating files which can be used in this application;


These tools & materials are provided 'as is' without warranties of any kind, express or implied.

Please verify the tools provided by this application by yourself before you use them. Ensure you understand the impact of using these tools.

Any use you choose to make of these tools & materials is undertaken by you entirely at you own risk.
