Ashampoo 3D CAD Professional 10 for Windows

Name: Ashampoo 3D CAD Professional 10
Rating: 3.7 (3 reviews)
Author: Ashampoo

By Ashampoo
Trial version
User Rating

Download now

Used Ashampoo 3D CAD Professional 10 for Windows? Share your experience and help other users.

This is a large (1.3GB) file and may take long time to download via slow Internet connection.

Developer’s Description

By Ashampoo

Create professional CAD designs down to the last detail.

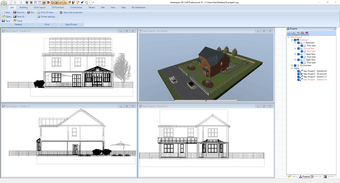

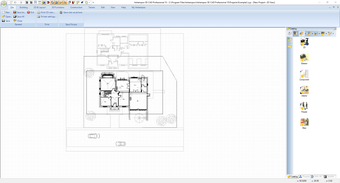

Ashampoo 3D CAD Professional 10 is the professional drawing program for designers, draftsmen, interior and landscape architects. The program completely covers the planning, visualization and calculation of projects without the need for additional software. With a clear, thematically organized interface, every function is just a mouse click away. The controls are logically arranged and easily accessible. Thanks to the import of SketchUp and Collada objects, millions of additional objects are available to plan even highly individual projects and constructions in great detail. The photovoltaic functions allow detailed planning of rooftop and flat-roof photovoltaic systems, while the design of entire facades is greatly simplified by grid elements. These plans can be easily exported as PDF, RTF or Excel files to enable accurate cost calculations including the preparation of quotations. 2D DXF and DWG files can be imported and exported directly from the program. In version 10 there is an extended catalog with over 250 new 3D objects, new doors, the balcony catalog as groups and retaining walls for terrain and garden planning. Railings can be used in many variations, and automatic dimensioning for 2D floor plans and automatic position texts for marking walls and windows make your work much easier. New functions such as the ground terrain element with 3D borders, fences as railing variations and the practical north arrow dialog for placing, rotating and scaling provide even greater ease of use and flexibility.
