Editors’ Review

Download.com staff
This plug-in for AutoCAD imports geometric data from ASCII and Binary VTK files, recreating polygon mesh data as native objects like points, lines, 3D faces, or a polyface mesh within the active drawing.

Top Recommended Alternative

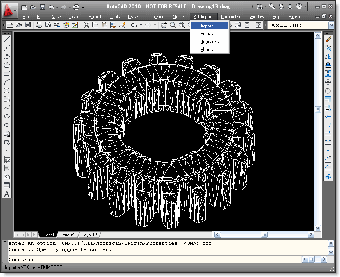

Enlarged image for VTK Import for AutoCAD
VTK Import for AutoCAD 0/1

  • Pros

    • Supports both ASCII and Binary VTK file formats
    • Imports polygon meshes with triangular or quad faces
    • Recreates models as native points and lines
    • Converts VTK data into AutoCAD 3D faces
    • Generates a single polyface mesh object

  • Cons

    No Cons available

Icon of program: VTK Import for AutoCAD

VTK Import for AutoCAD for Windows

Download now

Used VTK Import for AutoCAD for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 95
  • Windows ME
  • Windows Vista
  • Windows 98
  • Windows XP
  • Windows 10
  • Windows 2000
  • Windows 2003
  • Windows Server
Additional Requirements
AutoCAD 2000
POPULARITY
Total Downloads
121
Downloads Last Week
13
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Import geometric data in AutoCAD from ASCII and Binary VTK files.

VTK Import for AutoCAD is a Visualization Toolkit (.vtk) file import plug-in for AutoCAD. This plug-in gives AutoCAD the ability to import geometric data from ASCII and Binary VTK files. VTK Import for AutoCAD reads polygon mesh data stored in VTK files and imports it into AutoCAD. A polygon mesh in a VTK file is comprised of a set of triangular or quad faces. VTK Import for AutoCAD recreates the VTK model data inside the active AutoCAD drawing. The model can be recreated as set of points, lines, polylines, 3D faces or a polyface mesh.
