This plugin provides AutoCAD users with the essential ability to export geometric data into industry-standard ASCII and Binary VTK files. It handles various object types and offers tessellation control.

Top Recommended Alternative

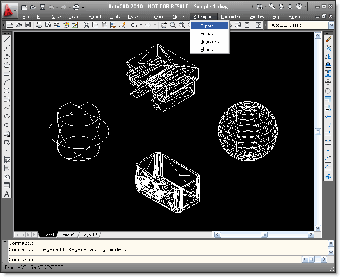

Enlarged image for VTK Export for AutoCAD
VTK Export for AutoCAD 0/1

  • Pros

    • Exports ASCII and Binary VTK files.
    • Supports 3D Solids, 3D Faces, Polygon, and PolyFace Meshes.
    • Adjustable tessellation resolution for mesh detail.
    • Easy to install and integrate into AutoCAD.
    • Includes comprehensive documentation and tutorial.
