Triangulation for AutoCAD or BricsCAD for Windows

Download now

Used Triangulation for AutoCAD or BricsCAD for Windows?

Editors’ Review

Download.com staff
This add-on enhances AutoCAD/BricsCAD with robust tools for terrain modeling, including point triangulation, isoline generation, and volume analysis. It supports various data imports and exports.

Top Recommended Alternative

  • Pros

    • Performs triangulation of millions of points.
    • Generates interpolated isolines with legends and thickening.
    • Calculates volume and center of gravity for surfaces.
    • Exports DWG files to 2D/3D KML for Google Earth.
    • Imports and exports LandXML data.

  • Cons

    No Cons available

Icon of program: Triangulation for AutoCAD…

Triangulation for AutoCAD or BricsCAD for Windows

Download now

Used Triangulation for AutoCAD or BricsCAD for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
2.3d
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows XP
  • Windows 10
  • Windows Server
  • Windows 2003
Additional Requirements
AutoCAD 2010-2020 or BricsCAD 14-20
POPULARITY
Total Downloads
1,490
Downloads Last Week
0
Report Software

Program available in other languages

Last Updated

Developer’s Description

By RCAD Software
Make triangulation of a set of point entities, isolines, equidistance plans in AutoCAD or BricsCAD.

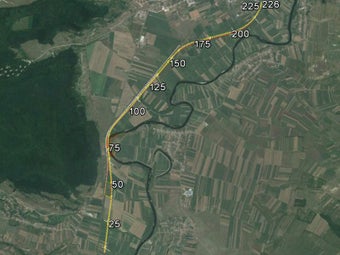

An add-on for AUTOCAD or BricsCAD, which makes the triangulation of a set of POINT entities, the intersection curves (isolines) between a set of 3DFACE entities and a set of equidistance plans, horizontally or vertically and the volume and center of gravity of a set of bodies or between surfaces composed of 3DFACE entities. You can also load and draw a file of points having the format: Number X Y Z Code. The drawing of the XYZ files is made with POINT, 3DPOLY, SPLINE or BLOCK entities, according to a modifiable library of codes. The triangulation is performed on a convex hull of a set of points. You can triangulate million points! The isolines can be interpolated and their colors are according to a drawn legend. The isolines having Z a multiple of a value will be drawn thickened. You can define a clipping parallelepiped for isolines. You can also make the projection over a triangulation of a 2D POLYLINE and generate cross sections and a longitudinal profile corresponding at projection. The POLYLINE may contain arcs. Color-filled contour maps can be also generated. In addition, you can draw a DWG file in Google Earth, by generating a 2D or 3D KML file type. The DWG file can be in any projected coordinate system and from any part of the globe. It is also possible to determine the flatness of the surfaces and you can import and export LandXML file type!
