Transmission Line Calc for iOS

Used Transmission Line Calc for iOS? Share your experience and help other users.

Developer’s Description

Transmission Line Calc allows you to perform several calculations related to RF transmission Lines.After selecting from one of 53 different...

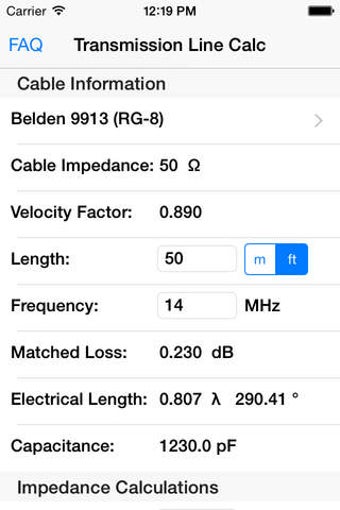

Transmission Line Calc allows you to perform several calculations related to RF transmission Lines.After selecting from one of 53 different transmission lines, you specify the length and operating frequency. The characteristic impedance and velocity factor of the cable is displayed, and the attenuation (loss) as well as electrical length (in wavelengths and degrees) is displayed.Next, you can specify the impedance (both resistive and reactive) and whether this is measured at the input to the transmission line or the load. The impedance at the other end of the transmission line is calculated, as well as the SWR (Standing Wave Ratio) for both ends.The loss due to the SWR is then calculated and displayed, as well as the total loss.Next, you can enter in the input power, the loss due to the cable as well as SWR is displayed, and the net power out.Supported cable types:Belden 8215 (RG-6A)Belden 8237 (RG-8)Belden 9913 (RG-8)Belden 9258 (RG-8X)Belden 8213 (RG-11)Belden 8261 (RG-11A)Belden 8240 (RG-58)Belden 9201 (RG-58)Belden 8219 (RG-58A)Belden 8259 (RG-58C)Belden 8212 (RG-59)Belden 8263 (RG-59B)Belden 9269 (RG-62A)Belden 83241 (RG-141A)Belden 8216 (RG-174)Belden 8267 (RG-213)Davis RF Bury-FlexTMS LMR-100ATMS LMR-200TMS LMR-240TMS LMR-400TMS LMR-600TMS LMR-900300 ohm Tubular450 ohm Window600 ohm OpenAndrew Heliax LDF4-50AAndrew Heliax LDF5-50AAndrew Heliax LDF6-50AGeneric 300 ohm TubularGeneric 450 ohm WindowGeneric 600 ohm OpenCommScope 6 Series PlenumCommScope 11 Series PlenumCommScope 59 Series PlenumCommScope 6 Series DropCommScope 11 Series DropCommScope QR 320 DropCommScope 59 Series DropAircell 5Aircell 7Aircom PlusEcoflex 10 StandardEcoflex 10 PlusEcoflex 15 StandardEcoflex 15 PlusEcoflex 10 Plus HTXMACX350A 3-1/8" Rigid LineMACX450A 4-1/16" Rigid LineMACX650A 6-1/8" Rigid LineMACX775A 7-3/16" Rigid LineMACX850A 8-3/16" Rigid Line
