SW Maps - GIS & Data Collector APK for Android

SW Maps is a free GIS and mobile mapping app for collecting, presenting and sharing geographic information.

Whether you are conducting a full scale GNSS survey with high precision instruments, need to collect large amount of location based data using nothing but your phone, or just need to view a few shapefiles with labels over a background map on the go, SW Maps has it all covered.

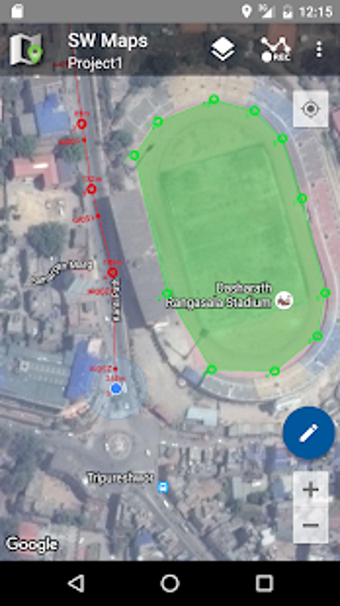

Record points, lines, polygons and even photos and have them displayed over your choice of background map, and attach custom attribute data to any feature. Attribute types include text, numbers, an option from a predefined set of choices, photos, audio clips and videos.

Conduct high accuracy GPS surveys using external RTK capable receivers over Bluetooth or USB Serial.

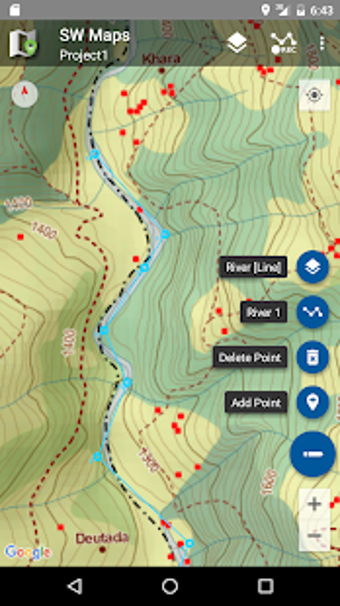

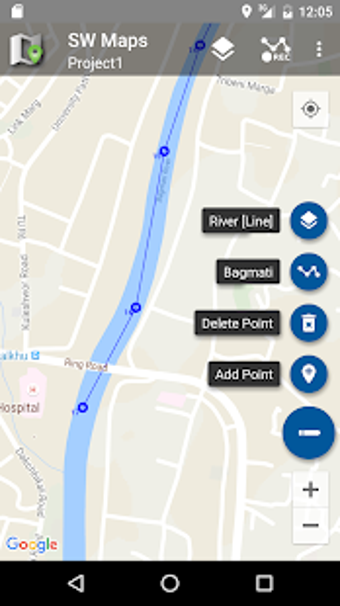

Draw features on the map by adding markers, and measure distance and area.

Reuse the layers and attributes of a previous project for another survey, or create templates and share them with other users.

Share the collected data with other users as KMZ or shapefiles, or export them to your device storage.

Features

-Online Base maps: Google Maps or Open Street Map

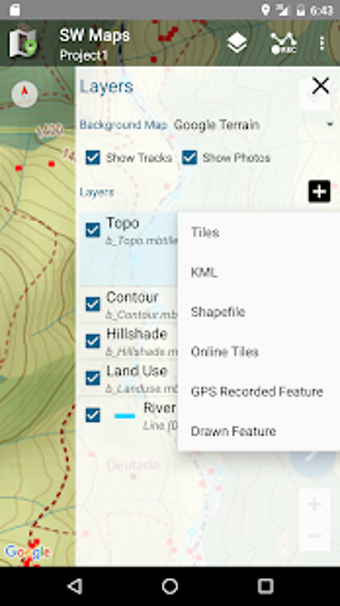

-Support for multiple mbtiles and KML overlays

-Shapefile layers, with attribute categorized styling. View shapefiles in any coordinate system supported by the PROJ.4 library.

-Add multiple online WMTS, TMS, XYZ or WMS layers and cache tiles for offline use.

-Connect to external RTK GPS receivers through Bluetooth or USB Serial for high accuracy surveying using RTK.

-Define multiple number of feature layers, each with a set of custom attributes

Feature Types: Point, Line, Polygon

Attribute Types:Text, Numeric, Drop down Options, Photos, Audio, Video

Save as Template for re-use or sharing

-Record GPS tracks, with distance measurement

-Draw features on map and export as KMZ, Shapefiles or GeoJSON

-Label features based on attribute values.

-Import feature layers from templates or existing projects.

-Share or export collected data as KMZ (with embedded photographs) , shapefiles or GeoJSON

-Share templates or projects with other usersTo load MBTiles, KML, shapefiles and GeoJSON from external SD card, create the following folders in the SD card root and copy files to the relevant folders.

SW_Maps/Maps/mbtiles

SW_Maps/Maps/kml

SW_Maps/Maps/shapefiles

SW_Maps/Maps/geojson

This product is made in Nepal and is FREE (no Ads). If you find this useful, please let your friends know that you have used a product from Nepal. Spare sometime to visit this wonderful country and know the Nepali people.
