SKP Import for Pro/ENGINEER for Windows

Download now

Used SKP Import for Pro/ENGINEER for Windows?

Editors’ Review

Download.com staff
SKP Import for Pro/ENGINEER enables Pro/ENGINEER Wildfire to import SketchUp mesh data, automatically converting triangular faces into trimmed planar surfaces and knitted bodies for seamless CAD integration.

Top Recommended Alternative

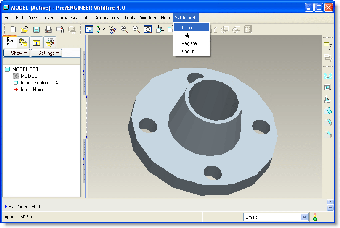

Enlarged image for SKP Import for Pro/ENGINE…
SKP Import for Pro/ENGINEER 0/1

  • Pros

    • Imports polygon mesh data directly from SketchUp SKP files
    • Automatically knits triangular faces to create solid or surface bodies
    • Integrates a dedicated SKPImport submenu into the Pro/ENGINEER environment
    • Supports creation of closed body features from closed polygon meshes
    • Provides simple commands for importing and managing SKP files

  • Cons

    • Requires manual configuration to load the plug-in after installation
    • Only supports SketchUp SKP file formats for data import
    • Converts complex geometry into numerous individual trimmed planar surfaces
    • Functionality is restricted specifically to Pro/ENGINEER Wildfire environments
Icon of program: SKP Import for Pro/ENGINE…

SKP Import for Pro/ENGINEER for Windows

Download now

Used SKP Import for Pro/ENGINEER for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 2003
  • Windows 2000
  • Windows 3
  • Windows 7
  • Windows Server
  • Windows 95
  • Windows ME
  • Windows Vista
  • Windows 10
  • Windows XP
  • Windows 98
Additional Requirements
Pro/ENGINEER 1.0/2.0/3.0/4.0/5.0
POPULARITY
Total Downloads
500
Downloads Last Week
12
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Provide SketchUp SKP file import add-in for Pro/ENGINEER.
SKP Import for Pro/ENGINEER is a SketchUp SKP file import plug-in for Pro/ENGINEER Wildfire�®. It gives Pro/ENGINEER Wildfire the ability to import objects from SketchUp SKP files.SKP Import for Pro/ENGINEER reads polygon mesh data stored in SKP files and imports it into Pro/ENGINEER Wildfire. A polygon mesh in a SKP file is comprised of a set of triangular faces. SKP Import for Pro/ENGINEER creates trimmed planar surfaces for each triangle and knits them together to create a body. If the polygon mesh is closed (i.e. it does not contain boundary edges) then SKP Import for Pro/ENGINEER will create a closed body feature, otherwise an open surface will be created.SKP Import for Pro/ENGINEER is very easy to use. Once installed, it must be loaded into the Pro/ENGINEER Wildfire environment. Follow the simple instructions in the "ReadMe" document which can be found in the installation folder. Once loaded, it adds new commands to Pro/ENGINEER Wildfire and a submenu called "SKPImport" to the Pro/ENGINEER Wildfire menu.The 'SKPImport' menu consists of the following commands: * Import - Imports a SKP file * Help - Displays the SKP Import for Pro/ENGINEER help file * Register - Registers your copy of SKP Import for Pro/ENGINEER * About - Displays the SKP Import for Pro/ENGINEER About box
