This is the app for drone enthusiasts who wish to have a more portable ground station.
Works with Arducopter and 3DR Solo platforms via wifi or BLE.
Please read the user manual at https://sidepilot.net/pdf/SidePilot-UserManual.pdf
NOTE: If you are not using the 3DR Solo, you must have either a BLE repeater module (HM-10, BLE Mini etc), or a Wifi connection to your drone.
Features:

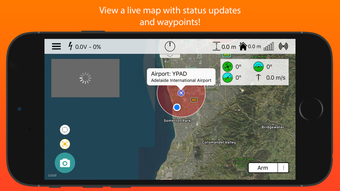

* GPS Location of drone
* Location of nearby aircraft shown on map

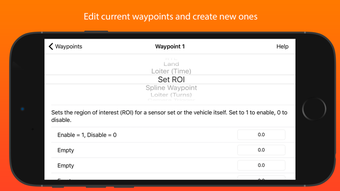

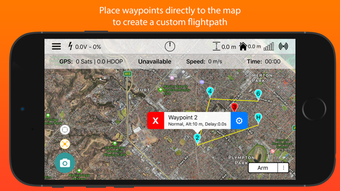

* Set, edit and delete waypoints offline & when connected. Import and export waypoint sets to share with devices, or edit using a text editor.
* Arm/Disarm
* Display VFR information such as altitude, yaw, pitch and roll.
* Voice alerts for mode changes and other important information
* Edit, save and load entire parameter sets
* Perform Pre-Flight checklist
* GPS satellite count and HDOP
* Distance from home/device
* Battery voltage display and warnings

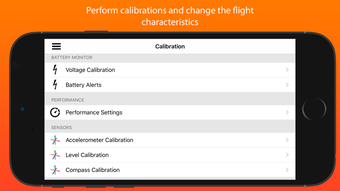

* Calibration of battery monitor, accelerometer, compass and radio limits
* Performance setting sliders. Allows for quick tuning of the drones performance
* Live stream direct to Facebook or YouTube from Solo
* View advanced status's about your drone such as IMU, vibration, RC input and output, etc
* Download Dataflash logs from your drone and export via email to view on PC
* Follow Me - Use your devices GPS to follow you at a set distance/altitude
* Orbit mode - Circle an object for a fantastic cinematic shots!
* Pre-Flight checklist current weather (wind & temp)information and alerts based on your location
* Grid Waypoints - Create a survey grid to fly
* Tap to fly to point - Tap a location and your drone will fly there!
* And many more
Quick-start guide (Using the BLE Repeater):
1. Insert radio into BLE Repeater
2. Turn on drone and BLE Repeater
3. Start app and click the connect button on the top right. If the app does not connect to the BLE Repeater, ensure your bluetooth is turned on, and that the BLE Repeater is enabled under settings/BLE Configuration.
4. The app should begin receiving data from the drone. If it does not, please ensure the radios are connected correctly and that the baud rate is set correctly in the BLE configuration under settings/BLE Configuration.
5. For any other issues, please visit the website at https://sidepilot.net
Quick-start guide (Using a WiFi UDP connection):
1. Turn on drone and connect using wifi
2. Start app and navigate to settings. Select either WiFi UDP, TCP or 3DR Solo (if using a 3DR Solo)
3. If setting up wifi manually, click on WiFi Settings and input the correct ip address and port that the mavlink protocol is running over. (Usually listed in settings as the router IP, and a port of 14550)
4. Go back to the main screen and press the connect button on the top right. The app should begin displaying information about the drone. If not, double check your wifi settings.
5. For any other issues, please visit the website at https://sidepilot.net
Please post suggestions and bug reports on the forums at http://sidepilot.net/forum
WARNING: Continued use of GPS running in the background can dramatically decrease battery life.
Note: All iOS Devices with Bluetooth Low Energy are supported, however iPads without cellular do not have GPS capability unless tethered to a iOS Device with cellular, and even then it is poor and not suitable for navigation.
