Pipedata has dimensional and weight information for 72 common ASME piping components all in a fast, convenient and easy to use interface. The Pipedata name has been around since 1996, when it was first applied to Pipedata-Pro. Since then it's gained a global presence in the piping industry with large corporations and individuals appreciating the Pipedata hallmarks of accuracy and up-to date relevant information.
Based on the latest ASME piping dimensional specifications it shows Metric, US Customary Units and Inch/Fractions and includes audited valve weights, flange weights and all piping component weights. This release is not limited to but includes the following range of information:
DATA SUMMARY
Pipe ASME B36.10M/19M - 2004

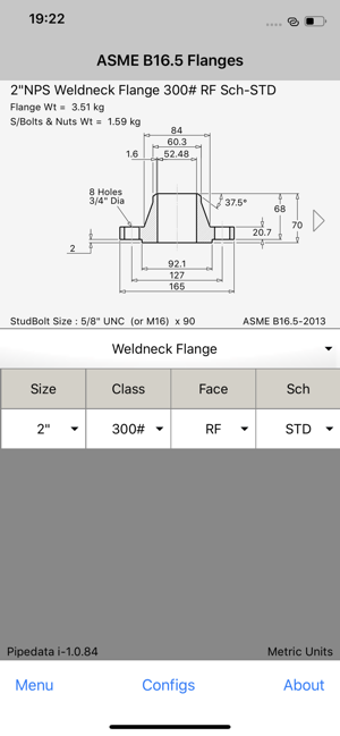

WeldNeck Flange, ASME B16.5-2013
Slip On Flange, ASME B16.5-2013
Blind Flange, ASME B16.5-2013
Threaded Flange, ASME B16.5-2013
SocketWelded Flange, ASME B16.5-2013
Lapped Flange, ASME B16.5-2013
Long Welding Neck Flange, ASME B16.5-2013
Buttwelded 45deg Elbow, ASME B16.9-2007

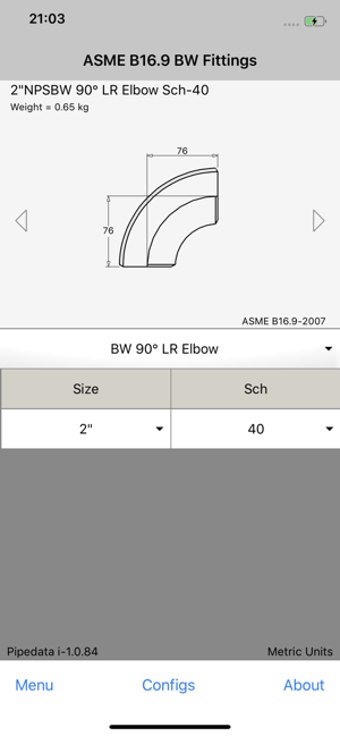

Buttwelded 90deg Long Radius Elbow, ASME B16.9-2007
Buttwelded 180deg Long Radius Return, ASME B16.9-2007
Buttwelded 90deg Short Radius Elbow, ASME B16.9-2007
Buttwelded 180deg Short Radius Return, ASME B16.9-2007
Buttwelded Equal Tee, ASME B16.9-2007
Buttwelded Reducing Tee, ASME B16.9-2007
Buttwelded Cap, ASME B16.9-2007
Buttwelded Concentric Reducer, ASME B16.9-2007
Buttwelded Eccentric Reducer, ASME B16.9-2007
Buttwelded Lap Joint Stub End, ASME B16.9-2007

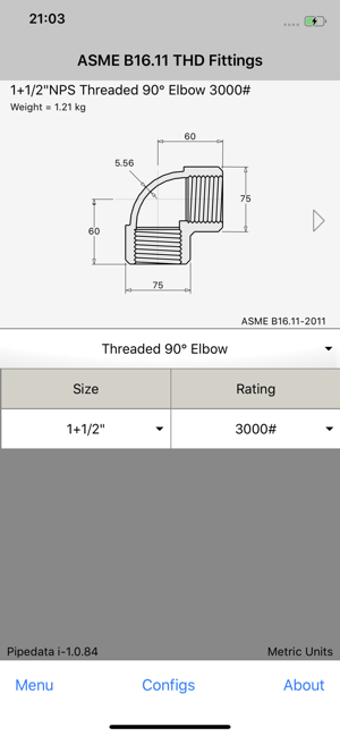

Threaded 90deg Elbow, ASME B16.11-2011
Threaded Tee, ASME B16.11-2011
Threaded Cross, ASME B16.11-2011
Threaded 45deg Elbow, ASME B16.11-2011
Threaded 90deg Street Elbow, ASME B16.11-2011
Threaded Coupling, ASME B16.11-2011
Threaded Half Coupling, ASME B16.11-2011
Threaded Cap, ASME B16.11-2011
Threaded Square Head Plug, ASME B16.11-2011
Threaded Hex Head Plug, ASME B16.11-2011
Threaded Round Head Plug, ASME B16.11-2011
Threaded Hex Head Bushing, ASME B16.11-2011
Threaded Flush Bushing, ASME B16.11-2011
Socketwelded 90deg Deg Elbow, ASME B16.11-2011
Socketwelded 45deg deg Elbow, ASME B16.11-2011
Socketwelded Tee, ASME B16.11-2011
Socketwelded Cross, ASME B16.11-2011
Socketwelded Coupling, ASME B16.11-2011
Socketwelded Half Coupling, ASME B16.11-2011
Socketwelded Cap, ASME B16.11-2011
Socketwelded Reducing Coupling, ASME Unadopted
Socketwelded Welding Boss, ASME Unadopted
Socketwelded Reducing Insert Type 1, ASME Unadopted
Socketwelded Reducing Insert Type 2, ASME Unadopted
Socketwelded Reducing Insert Type 3, ASME Unadopted
Socketwelded Union, ASME Unadopted
Socket Details, ASME B16.11-2011
Non Metallic Flat Ring for ASME B16.5 Flanges, ASME B16.21-2011
Non Metallic Flat Ring for ASME B16.47 Series A Flanges, ASME B16.21-2011
Non Metallic Flat Ring for ASME B16.47 Series B Flanges, ASME B16.21-2011
Spiral wound for ASME B16.5 Flanges, ASME B16.20-2012
Spiral wound for ASME B16.47 Series A Flanges, ASME B16.20-2012
Spiral wound for ASME B16.47 Series B Flanges, ASME B16.20-2012
RTJ Soft Iron Ring type R, ASME B16.20-2012
RTJ Soft Iron Ring RX, ASME B16.20-2012
RTJ Soft Iron Ring BX, ASME B16.20-2012
Flanged Gate Valve, ASME B16.10-2009

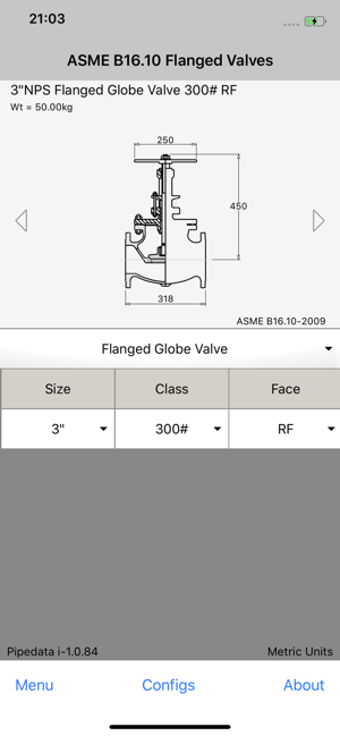

Flanged Globe Valve, ASME B16.10-2009
Flanged Ball Valve, ASME B16.10-2009
Flanged Control Valve, ASME B16.10-2009
Flanged Swing Check Valve, ASME B16.10-2009
Flanged Wafer Check Valve, API 594
Wafer type Butterfly Valves, ASME B16.10-2009...
and much more: Check it out!
