Icon of program: OBJ Import for Pro Engine…

OBJ Import for Pro Engineer for Windows

Download now

Used OBJ Import for Pro Engineer for Windows?

Editors’ Review

Download.com staff
This plugin enables Pro/ENGINEER Wildfire to import geometric data from OBJ files. It converts polygon mesh data into usable surfaces and bodies within the software.

Top Recommended Alternative

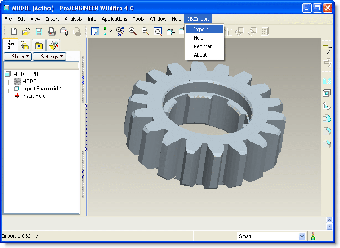

Enlarged image for OBJ Import for Pro Engine…
OBJ Import for Pro Engineer 0/1

  • Pros

    • Imports geometric data from OBJ files.
    • Converts triangular and quad faces into trimmed planar surfaces.
    • Creates closed bodies for closed meshes.
    • Creates open surfaces for open meshes.
    • Easy to use with simple installation and clear instructions.

  • Cons

    • Requires Pro/ENGINEER Wildfire environment.
    • Only imports OBJ files.
Icon of program: OBJ Import for Pro Engine…

OBJ Import for Pro Engineer for Windows

Download now

Used OBJ Import for Pro Engineer for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 10
  • Windows 95
  • Windows ME
  • Windows Vista
  • Windows Server
  • Windows XP
  • Windows 2000
  • Windows 2003
  • Windows 98
Additional Requirements
Pro/ENGINEER 1.0
POPULARITY
Total Downloads
337
Downloads Last Week
6
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Import geometric data from OBJ files.
OBJ Import for Pro/ENGINEER is a Wavefront (.obj) file import plug-in for Pro/ENGINEER Wildfire. This plug-in gives Pro/ENGINEER Wildfire the ability to import geometric data from OBJ files. OBJ Import for Pro/ENGINEER reads polygon mesh data stored in OBJ files and imports it into Pro/ENGINEER Wildfire. A polygon mesh in an OBJ file is comprised of a set of triangular/quad faces. OBJ Import for Pro/ENGINEER creates trimmed planar surfaces for each triangle/quad and knits them together to create a body. If the polygon mesh is closed (i.e. it does not contain boundary edges) then OBJ Import for Pro/ENGINEER will create a closed body feature, otherwise an open surface will be created. OBJ Import for Pro/ENGINEER is very easy to use. Once installed, it must be loaded into the Pro/ENGINEER Wildfire environment. Follow the simple instructions in the "ReadMe" document which can be found in the installation folder. Once loaded, it adds new commands to Pro/ENGINEER Wildfire and a submenu called "OBJImport" to the Pro/ENGINEER Wildfire menu.
