Editors’ Review

Download.com staff
Netgen is an automatic mesh generation tool written in C++ that handles 2D (triangular/quadrilateral) and 3D (tetrahedral) structures. It supports complex input formats like CSG and STL, offering optimization and hierarchical refinement capabilities.

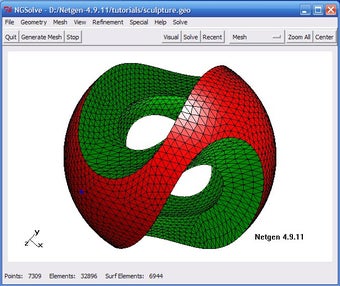

Enlarged image for Netgen Mesh Generator (32…
Netgen Mesh Generator (32-Bit) 0/1

  • Pros

    • Generates triangular, quadrilateral, and tetrahedral meshes in 2D and 3D.
    • Supports CSG, STL, and BRep/IGES/STEP input formats for 3D modeling.
    • Provides automated mesh optimization and hierarchical mesh refinement.
    • Supports curved elements of arbitrary or higher order.
    • Features automated topology based mesh size control.

  • Cons

    • BRep/IGES/STEP input requires specific OpenCascade compilation support.
    • 2D input geometry is limited specifically to spline curves.
    • No explicit mention of hexahedral or prismatic 3D mesh generation.
Icon of program: Netgen Mesh Generator (32…

Netgen Mesh Generator (32-Bit) for Windows

Download now

Used Netgen Mesh Generator (32-Bit) for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
5.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows Vista
  • Windows 7
  • Windows 10
  • Windows XP
  • Windows 2000
Additional Requirements
None
POPULARITY
Total Downloads
551
Downloads Last Week
1
Report Software

Program available in other languages

Last Updated

Developer’s Description

By Joachim Schoeberl
Create and view mesh structures on PC.
Netgen is an automatic mesh generation tool written in C++ capable of generating meshes in two and three dimensions. Netgen generates triangular or quadrilateral meshes in 2D, and tetrahedral meshes in 3D. The input for 2D is described by spline curves, and the input for 3D problems can be defined by Constructive Solid Geometry (CSG), the standard STL file format, or via Boundary Representations (BRep/IGES/STEP) when compiled with OpenCascade support. NETGEN provides modules for automated mesh optimization and hierarchical mesh refinement. Curved elements or arbitrary order are supported. It features two and three dimensional surface meshing, three dimensional volume meshing, automated topology based mesh size control, mesh refinement algorithms, and curved (higher order) elements.
