Motor Calculator APK for Android

This is a good tool to design and calculate your motor control center component according to ABB and Schneider products.

This app help you to calculate the true value and capacity of contactor & overload & circuit breaker and cable size, also a report with all loads and it's calculation with list of the models and number of all component.

* Just input your motor data :

- motor power(kw)

- voltage (volt)

- motor Type (1 or 3~)

- power factor

- starting type (direct on line or star-delta)

- distance from the motor to panel

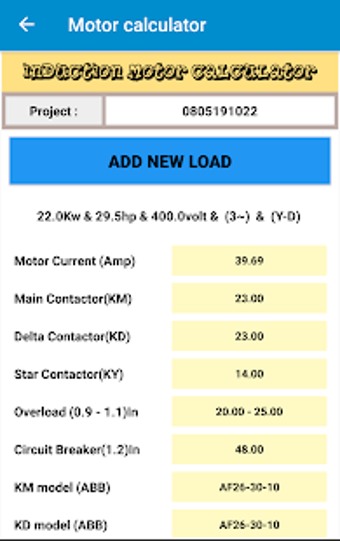

* Then click calculate to obtain:

- Current value

- Main, Star and Delta Contactor capacity

- overload range

- Circuit breaker range

- Cable size and voltage drop (up to 1000 m cable Length)

- total power in kw

- model of Contactors, overloads and circuit breakers

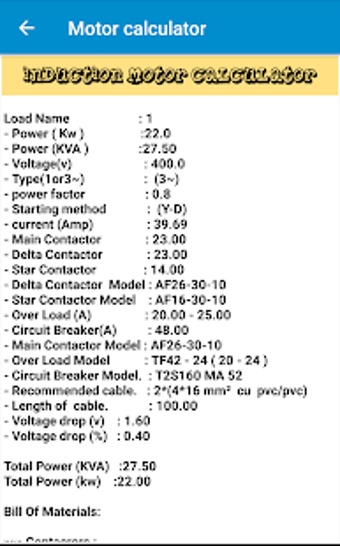

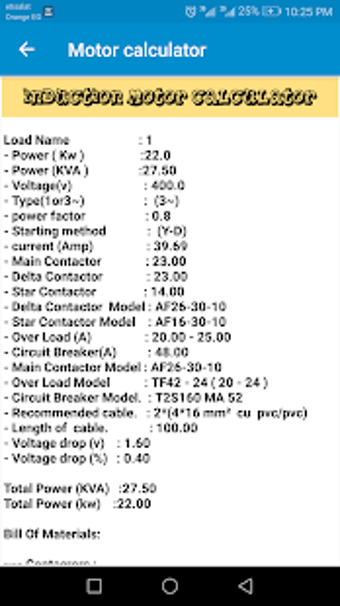

- list of all loads and it's calculated data and models selected

- bill of materials

- power and control wirring

Try it
