Logic Friday for Windows

Name: Logic Friday
Rating: 4 (1 reviews)
Author: Logic Friday

By Logic Friday
Free
User Rating

Download now

Key Details of Logic Friday

Solve digital logic circuits based on IC packages with logic functions.
Last updated on November 7, 2018
There have been 1 updates
Virus scan status:
Clean (it's extremely likely that this software program is clean)

Developer's Description

By Logic Friday

Solve digital logic circuits based on IC packages with logic functions.

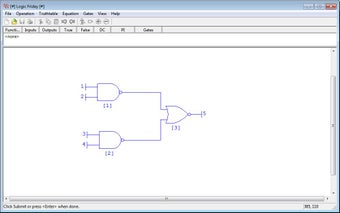

Logic Friday is a freeware tool for students, hobbyists, and engineers who work with legacy digital logic circuits based on standard IC packages. Features include enter a logic function as a truth table, an equation, or a gate diagram, enter functions with up to 16 inputs and 16 outputs, minimize a function with options of fast or exact minimization, automatically generate a multi-level gate diagram using gates chosen from a library, automatically minimize the number of standard gate packages, trace the logic state of each gate's inputs and outputs for a given input vector, compare logic functions, generate new functions as logical combinations of others, view any function as a truth table, equation, or gate diagram, generate compact C code lookup functions from logic functions, save functions and gate diagram images to files, and export or import truth tables as CSV files for editing in spreadsheet applications.
