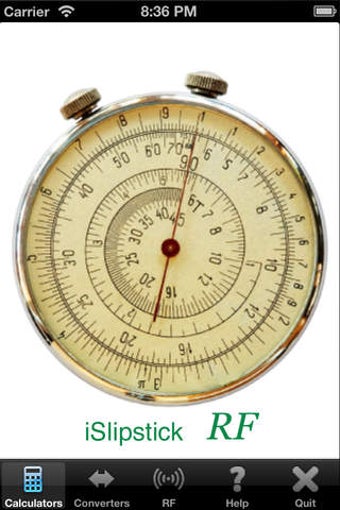

iSlipstick RF for iOS

Download now

Used iSlipstick RF for iOS? Share your experience and help other users.

Key Details of iSlipstick RF

iSlipstick RFiSlipstick RF contains all of the functionality of the standard iSlipstick plus many functions specifically for RF work.RF Calculators...
Last updated on June 10, 2016
There have been 8 updates
Virus scan status:
Clean (it’s extremely likely that this software program is clean)

Developer’s Description

By Sam Virgillo

iSlipstick RFiSlipstick RF contains all of the functionality of the standard iSlipstick plus many functions specifically for RF work.RF Calculators...

iSlipstick RFiSlipstick RF contains all of the functionality of the standard iSlipstick plus many functions specifically for RF work.RF Calculators included with iSlipstick RF are:PATH LOSS Enter all of the RF link parameters such as transmitter output power, antenna gain, cable loss, distance and frequency to find the actual RF level at the receiver.MICROWAVE DISH BEAMWIDTH & GAIN Enter the dish size, frequency and efficiency to find the 3 dB beamwidth and antenna gain.WAVELENGTH Metric & U.S.RETURN LOSS / VSWR Enter forward and reflected power to find VSWR, reflection coefficient and return loss.FRESNEL ZONE Enter link distance, obstacle distance and frequency to find the 60% and 80% zone radii. This calculator also provides a visual display of ground clearance.VELOCITY FACTOR (VOP) Enter the dielectric constant of a coax to find the Velocity of Propagation and enter the cable length to find the propagation delay. This calculator can also find the necessary cable length for a given delay and VOP.INTERMODULATION Enter up to six frequencies to find the 2nd, 3rd, 5th and 7th intermod products that can be created. A 'hit' window can be set to eliminate out of band results.I.F. FREQUENCY Enter the incoming carrier frequency and 1st local oscillator frequency to find the resulting I.F. and whether the spectrum is inverted or normal. This is a great calculator when working with up/down converters.INTERCEPT POINT Once you have determined the levels of fundamental and intermodulation tones in a system, you can enter those values into this calculator to find either IP2 or IP3.Standard Calculators included in iSlipstick RF are:OHM'S LAW Find voltage, current, resistance and power.REACTANCE Find inductive and capacitive reactance by entering frequency and capacitance or inductance.RESONANCE Find the resonant frequency of an inductor capacitor pair.VOLTAGE DIVIDER Enter the voltage into a resistor divider network to find the output voltage.PARALLEL RESISTOR Enter up to six resistor values to find the resultant parallel resistance.SERIES and PARALLEL RLC Enter R, C and L of a series or parallel circuit to find the impedance and phase angle.OP-AMP Find the gain of either an inverting or non-inverting op-amp circuit.TIME CONSTANT - Find the first 5 time constants of both RC and RL circuits. Standard Converters included in iSlipstick RF are:RESISTOR COLOR CODE Enter a resistor value to find the color code or enter the color code to find the resistor value.SMT RESISTOR Enter 3 digit or 4 digit SMT codes to find the resistance value.Also does EIA-96 conversion. VOLTAGE CONVERTER Convert between RMS, average, peak and p-p values.dB CONVERTER Convert dBm, dBV, dBW and dBuV to absolute values and vice-versa in 50, 75 and 600 ohm load.TEMPERATURE Convert between four popular scales.PERIOD FREQUENCY Convert waveform period to frequency and vice-versa.LENGTH, AREA, VOLUME, CAPACITY and WEIGHT Convert from metric to U.S. and vice-versa. Also convert within same standard.A help page is also available as a quick function guide.Tested with iOS 6.0, thru iOS 9.0
