CAP Tool is a Windows program for creating arbitrary waveform generator files. It uses time expressions to define patterns for benchtop instruments or automation scripts, supporting numerous export formats.

Top Recommended Alternative

Enlarged image for CAP Tool
CAP Tool 0/3

  • Pros

    • Defines patterns using continuous or piecewise time expressions
    • Supports multiple instrument-specific formats like .rdf, .arb, and .wfm
    • Generates C/C++ header and Tcl source files for automation
    • Outputs delimited text files for data analysis
    • Exports data directly to the clipboard for spreadsheets

  • Cons

    • Available only for the Windows operating system
    • Lacks a graphical user interface for drawing waveforms
    • Does not support importing or editing existing waveform files
Icon of program: CAP Tool

CAP Tool for Windows

Download now

Used CAP Tool for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.63
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 10
  • Windows XP
  • Windows Vista
  • Windows 2000
  • Windows 98
  • Windows 7
  • Windows NT
Additional Requirements
None
POPULARITY
Total Downloads
131
Downloads Last Week
6
Report Software

Program available in other languages

Last Updated

Developer’s Description

By Stella Blue Engineering Software
Create arbitrary waveform generator files.

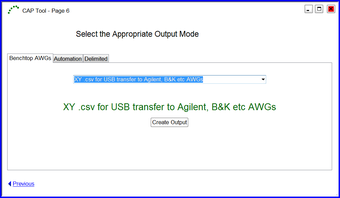

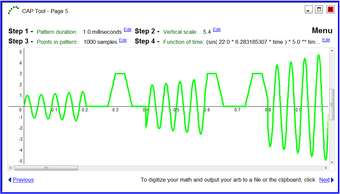

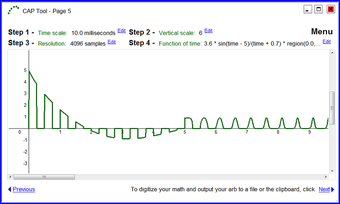

CAP Tool is a Windows program for creation of arbitrary waveform generator files. You can include the files in programs for automation or write the files to USB drives for download to benchtop instruments. CAP Tool supports 1) .rdf format for Rigol AWGs 2) binary .arb format for the Rigol DS1104z-s 3) .wfm format for Tektronic / Rigol equipement 4) XY .csv format for certain Agilent / B&K / Tek generators 5) text .arb format for transfer to Agilent 3350 series AWGs 6) .dat format for Syscomp 7) .h files to be included into C / C++ programs 8) .tcl files to be sourced into Tcl programs 9) clipboard to spreadsheet 10) delimited text files and 11) delimited clipboard output. People can use continuous or piecewise time expressions to define arbitrary patterns with CAP Tool.
