Editors’ Review

Download.com staff

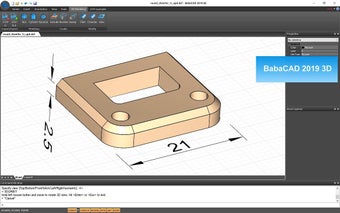

BabaCAD delivers a free, professional 64-bit CAD solution featuring a modern ribbon interface, multi-document support, and robust LISP integration. It offers comprehensive 2D and initial 3D drawing capabilities.

Top Recommended Alternative

  • Pros

    • 64-bit multi-document interface (MDI) support.
    • Modern ribbon interface with large buttons.
    • Supports DXF, DWG, and LISP files.
    • Configurable auto-save with recovery functionality.
    • Anti-aliased smooth rendering.

  • Cons

    • Full 3D modeling functionality is currently missing.
    • Linetype customization requires manual file update.
    • Auto-save interval changes via command line.
    • Z-coordinate updates are manual via properties window.
Icon of program: BabaCAD 2017

BabaCAD 2017 for Windows

Download now

Used BabaCAD 2017 for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
2.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 10
  • Windows XP
  • Windows 2003
  • Windows Vista
  • Windows 8
  • Windows 7
  • Windows Server
Additional Requirements
None
POPULARITY
Total Downloads
3,214
Downloads Last Week
2
Report Software

Program available in other languages

Last Updated

Developer’s Description

By BabaCAD
Get a 64-bit professional free CAD with modern designed interface, DXF, DWG and LISP.
64-bit version with MDI (multiple-document-interface).Modern designed with ribbon bar and large buttons.Different line types loads from bcad.lin.User can update bcad.lin with custom linetypes.Auto-save with recovery (default 5 min).Type AUTOSAVEINTERVAL in command window to change.Dynamic input (can be turned off - statusbar).Easy start commands with auto-complete input.Type line/polyline length/angle using DynInput.Grid lines (F7 or status bar to turn on/off).Anti-aliased smooth rendering (LW).New objects like SPLINE, 3D POLYLINE, ELLIPSE.Join polylines, break polyline, break spline.New modify tools: array, mirror.Copy objects and blocks between multiple documents.LISP enabled, use APPLOAD or update bcad.mnu to load lisps.3D ready version (3D Modeling coming soon) with 3D objects.LINE, 3D POLYLINE, POINT are 3D objects in BabaCAD 2017.Update Z coordinate in Properties window.Use 3DORBIT or VIEW to navigate in 3D or projection planes.Image (raster) save is working now (saved with path ref.)
