EngineSim

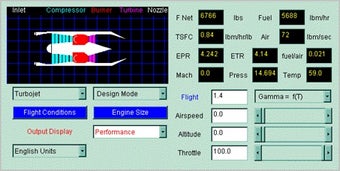

EngineSim works in two modes: Design Mode or Tunnel Test Mode. In the Design Mode, you can change design variables including the flight conditions, the engine size, the inlet performance, the turbo machinery compressor and turbine performance, the combustors or burner performance, or the nozzle performance. For a turbofan engine design you can also vary the fan performance and the bypass ratio. When you have a design that you like, you can switch to the Tunnel Test Mode, where you can vary only the flight conditions (airspeed, altitude, and throttle setting).
