This add-in equips SolidWorks with direct VTK file export capabilities. It converts 3D solid data from part and assembly documents into triangular meshes for visualization workflows.

Top Recommended Alternative

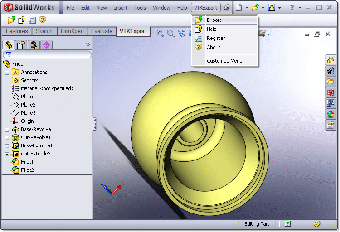

Enlarged image for VTK Export for SolidWorks
VTK Export for SolidWorks 0/1

  • Pros

    • Exports 3D solid data from parts and assemblies
    • Converts solid bodies into triangular mesh objects
    • Provides user control over mesh tessellation resolution
    • Integrates directly within the SolidWorks application
    • Creates standard Visualization Toolkit (.vtk) files

  • Cons

    • Does not export non-solid geometry like surfaces
    • Lacks functionality to import VTK files
    • Mesh output is limited to triangular elements
    • Supports only the VTK file format for export
    • No features for batch processing multiple files
Icon of program: VTK Export for SolidWorks

VTK Export for SolidWorks for Windows

Download now

Used VTK Export for SolidWorks for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 98
  • Windows ME
  • Windows XP
  • Windows 10
  • Windows Vista
  • Windows 2003
  • Windows 95
  • Windows Server
  • Windows 2000
Additional Requirements
SolidWorks 2000
POPULARITY
Total Downloads
144
Downloads Last Week
13
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Export 3D data from SolidWorks to mesh objects in VTK file.

VTK Export for SolidWorks is a Visualization Toolkit (.vtk) file export add-in for SolidWorks. This add-in gives SolidWorks the ability to export 3D solid data from a SolidWorks part and assembly document to mesh objects in a VTK file. VTK Export for SolidWorks tessellates solid bodies in a SolidWorks part or assembly document into individual triangular meshes. These meshes are then exported to a VTK file as mesh objects. The level of tessellation can be controlled by adjusting the resolution slider in the VTK Export Options dialog box. A lower resolution will yield coarse meshes (lesser faces), whereas a higher resolution will result in finer meshes (more faces).
