Key Details of Visual Circuit

  • Generate reports required for electrical control schematics.
  • Last updated on
  • There have been 7 updates
  • Virus scan status:

    Clean (it's extremely likely that this software program is clean)

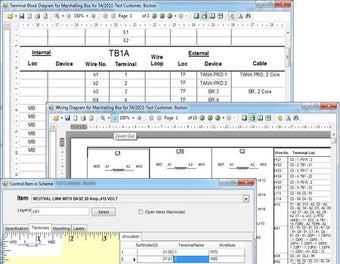

Enlarged image for Visual Circuit
Visual Circuit 0/1

Developer's Description

Generate reports required for electrical control schematics.

Visual Circuit enables GUI based entry of various devices and their wire buses and then generates various documents such as Terminal Block Diagram, Wiring Diagram, and Material Lists. Enabling you to draw schematics on your "normal" CAD workstation and still automating follow through documents.

Features include data stored in Microsoft SQL Server database, comprehensive viewing, navigation, and printing engine for data, standard data such as, define item coding system and item codes, define item BOM for control items (example Contactor Assembly with base contactor and add-on block), define mounting types and their description and hardware, and define control item characteristics like terminal information, mounting type, and lug information, define and manage work orders, define work order panels, add devices to panel in work order, define wire buses, assign buses to control device terminals, and outputs material list, wiring diagram per-device, wiring list - per wire bus, terminal block diagram, labels, hardware and lugs list, and panel interconnections.



Explore More


Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 2003
  • Windows 7
  • Windows 10
  • Windows Server
  • Windows Vista
  • Windows XP
Additional Requirements
Microsoft SQL Server 2005, Microsoft .Net Framework 4.0
POPULARITY
Total Downloads
90
Downloads Last Week
0
