STL Import for Pro/ENGINEER for Windows

Download now

Used STL Import for Pro/ENGINEER for Windows?

Editors’ Review

Download.com staff
This plugin seamlessly integrates STL file import into Pro/ENGINEER Wildfire, enabling the import of geometric data from ASCII and Binary STL files with ease.

Top Recommended Alternative

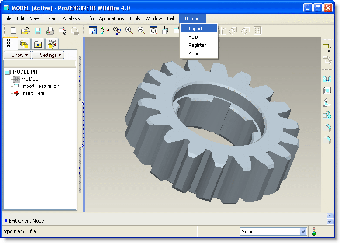

Enlarged image for STL Import for Pro/ENGINE…
STL Import for Pro/ENGINEER 0/1

  • Pros

    • Imports ASCII and Binary STL files.
    • Creates trimmed planar surfaces from mesh data.
    • Generates closed bodies for valid meshes.
    • Creates open surfaces for invalid meshes.
    • Offers a simple and intuitive user interface.

  • Cons

    • Requires loading into the Pro/ENGINEER Wildfire environment.
    • Adds a dedicated submenu for STL import commands.
Icon of program: STL Import for Pro/ENGINE…

STL Import for Pro/ENGINEER for Windows

Download now

Used STL Import for Pro/ENGINEER for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 2000
  • Windows Vista
  • Windows XP
  • Windows 95
  • Windows ME
  • Windows 10
  • Windows 98
  • Windows 2003
  • Windows Server
Additional Requirements
Pro/ENGINEER 1.0, 2.0, 3.0, 4.0 & 5.0
POPULARITY
Total Downloads
347
Downloads Last Week
16
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Provide STL file import for Pro/ENGINEER.
STL Import for Pro/ENGINEER is a Stereolithography (.stl) file import plug-in for Pro/ENGINEER Wildfire. This plug-in gives Pro/ENGINEER Wildfire the ability to import geometric data from ASCII and Binary STL files.STL Import for Pro/ENGINEER reads polygon mesh data stored in STL files and imports it into Pro/ENGINEER Wildfire. A polygon mesh in a STL file is comprised of a set of triangular faces. STL Import for Pro/ENGINEER creates trimmed planar surfaces for each triangle/quad and knits them together to create a body. If the polygon mesh is closed (i.e. it does not contain boundary edges) then STL Import for Pro/ENGINEER will create a closed body feature, otherwise an open surface will be created.STL Import for Pro/ENGINEER is very easy to use. Once installed, it must be loaded into the Pro/ENGINEER Wildfire environment. Follow the simple instructions in the "ReadMe" document which can be found in the installation folder. Once loaded, it adds new commands to Pro/ENGINEER Wildfire and a submenu called "STLImport" to the Pro/ENGINEER Wildfire menu. The 'STLImport' menu consists of the following commands: * Import - Imports a STL file * Help - Displays the STL Import for Pro/ENGINEER help file * Register - Registers your copy of STL Import for Pro/ENGINEER * About - Displays the STL Import for Pro/ENGINEER About box
