Sewer design app for iOS

By Alejandro Escandon
Paid
User Rating

Download now

Key Details of Sewer design app

Calculate the needed diameter and slope for a sewer pipe. Then you can change again slope and diameter and recalculate.The Manning Equation is used...
Last updated on June 11, 2016
There have been 4 updates
Also available on
Virus scan status:
Clean (it's extremely likely that this software program is clean)

Developer's Description

By Alejandro Escandon

Calculate the needed diameter and slope for a sewer pipe. Then you can change again slope and diameter and recalculate.The Manning Equation is used...

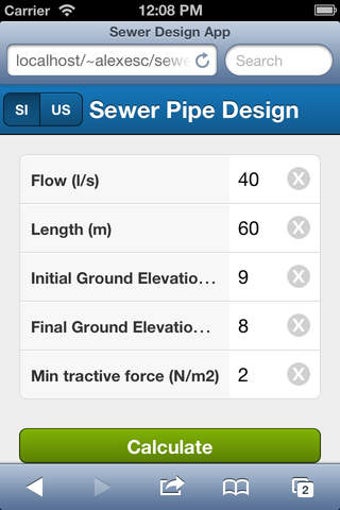

Calculate the needed diameter and slope for a sewer pipe. Then you can change again slope and diameter and recalculate.The Manning Equation is used for Calculation of Pipe Diameter and Slope.Input data are design flow, desired tractive force, elevations of ground initial and final.The app can be used in the SI or US units.Example: The design flow rate for a section of storm sewer between two manholes is: Qdes = 10 l/s. Find a combination of a standard pipe diameter and pipe slope to use for this section of sewer to meet the criteria of minimun tractive force. The required minimum tractive force for sanitary sewer is 2 N/m2. See solution of example in the screenshot. - Initial ground elevation = 10 m (ground elevation of initial and final manholes is used to calculate the ground slope and check that slope of the pipe is not less than ground).- Final ground elevation = 9 m- Length of pipe = 60 m- Desired flow = 40 liters per seconds- Desired tractive force = 2 N/m2And as a result of the design, after pressing the calculate button, we get the following results:Slope (Slope), Pipe diameter, height of water in the pipe (depth / diameter), Velocity and froude numberThe slope and diameter can be modified in the result and calculate again.
