PowerVue is a versatile and user-friendly software for electrical design and analysis. It handles load flow calculations, fault analysis, and provides detailed device information for various applications.

Top Recommended Alternative

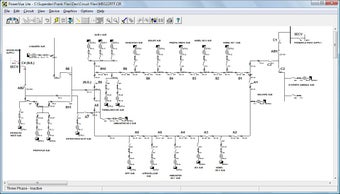

Enlarged image for PowerVue Circuit Analyzer
PowerVue Circuit Analyzer 0/1

  • Pros

    • Calculates DC, single-phase, and three-phase circuits.
    • Provides detailed device voltage, current, and power flow data.
    • Evaluates impact of disconnected devices on the circuit.
    • Performs comprehensive three-phase fault calculations with motor contribution.
    • Allows customization of device symbols and database records.

  • Cons

    • No mention of cloud-based collaboration.
    • Graphics annotation features are basic.
    • Limited information on reporting customization.
    • No explicit support for mobile devices.
    • Specific integration capabilities are not detailed.
Icon of program: PowerVue Circuit Analyzer

PowerVue Circuit Analyzer for Windows

Download now

Used PowerVue Circuit Analyzer for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
6.25
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 7
  • Windows 10
  • Windows Vista
  • Windows XP
Additional Requirements
None
POPULARITY
Total Downloads
364
Downloads Last Week
10
Report Software

Program available in other languages

Last Updated

Developer’s Description

By Megasys Software
Provide electrical design and analysis of power distribution systems.
Highly versatile and easy to use, PowerVue was designed for use on most electrical design and analysis applications. Use it for commercial building services, industrial plants, distribution systems, power factor correction. Any project where you need to know voltage, current, kw, kva or kvar on any and all parts of the circuit. Save time on load flow calculations and line to neutral , line to line and 3-phase faults.A list of some of the capabilities of PowerVue:

* Calculate DC, single phase or three phase circuits. * Complete device information includes node voltages, voltage drops, current, kW, kVA and kVAr flow. * Evaluate the effects of disconnected devices and branches on the rest of the circuit. * Calculate three-phase, line to ground, line to line and double line to ground fault. Include motor contribution to fault. Show earth current, fault R/X ratio, RMS and peak fault current. * Single click display of device rating and electrical data. Graphical display of voltage and current vectors. * Create or modify device symbols, up to 260 symbols per file. * Add to or modify database device classification. Add or modify device database records. * Highlight devices with overcurrent, kVA/kW overload, over/undervoltage. * Print or plot to any Windows compatible printer or plotter. * Cut, copy and paste devices and circuit sections to the Windows clipboard. * Use graphics to annotate and add legends, title blocks, logos to the single line diagram.
