Developer’s Description
About
An open source physics at Singapore simulation based on codes written by Fu-Kwun Hwang and Loo Kang WEE.
Introduction
The oscilloscope is an electronic instrument widely used in making electrical measurements.
The main component of the oscilloscope is the cathode ray tube (CRT).
The CRT is a vacuum tube in which electrons are accelerated and deflected under the influence of electric field. The electrons are deflected in various directions by two sets of plate placed at right angle to each other in the neck of the tube.

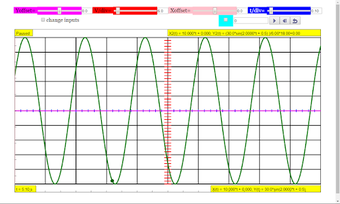

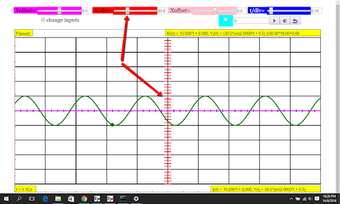

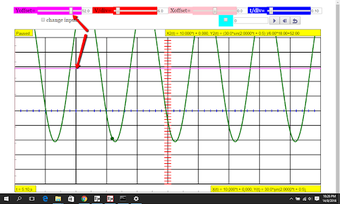

Signal for the horizontal deflection plate (X-axis) is generated by the scope
It mathematics form is Fx(t)= C t + D (default)
C : time scale
D : horizontal offset
The external signal (need to be measured) is applied to the vertical deflection plate (Y axis).
The default form for this java applet is Fy(t)=A sin(w t + B)
You can change X or Y axis signal to either kind of signal.
Acknowledgement
My sincere gratitude for the tireless contributions of Francisco Esquembre, Fu-Kwun Hwang, Wolfgang Christian, Flix Jess Garcia Clemente, Anne Cox, Andrew Duffy, Todd Timberlake and many more in the Open Source Physics community. I have designed much of the above based on their ideas and insights, and I thank the OSP community for which Singapore was honored with 2015-6 UNESCO King Hamad Bin Isa Al-Khalifa Prize for the Use of ICTs in Education.
