LanFlow Net Diagrammer for Windows

Used LanFlow Net Diagrammer for Windows? Share your experience and help other users.

Developer’s Description

By Pacestar Software

Create a layout of your network or communication system.

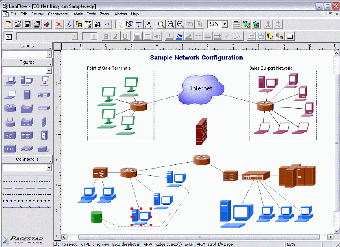

Diagramming tool for laying out, designing, and documenting a network, LAN, internet, or other communications system. Drop in components like computers, workstations, and servers and connect them with lines and cables of all sorts. Choose your components from the built in symbols or add your own using clipart Connect your components with a variety of lines.

LanFlow Net Diagrammer for Windows

Used LanFlow Net Diagrammer for Windows? Share your experience and help other users.

Explore More

Full Specifications

GENERAL

Release: November 25, 2022

Latest update: November 25, 2022

Version: 7.05.2175

OPERATING SYSTEMS

Platform: Windows

Operating System

Windows Vista
Windows NT
Windows 10
Windows Server
Windows 2000
Windows 95
Windows 2003
Windows ME
Windows 7
Windows XP
Windows 98

Additional Requirements: None

POPULARITY

Total Downloads: 138,078

Downloads Last Week: 1

Report Software

Program available in other languages

Descargar LanFlow Net Diagrammer

Last Updated

User Reviews

4/5

4 User Votes

Good Product
schirdDecember 14, 2012
Pros
Easy to get going Plenty of options
Cons
Nothing really
Summary
This enabled me to do a diagram of our small network quite easily. If I had an on-going need to diagram systems I would seriously consider purchasing it.
easy to use, just click and drag.
joenovak1March 21, 2011
Pros
click and drag, quickly able to label, arrange and print
Cons
none to speak of
Summary
a nice piece of software that does what it says it will.
Great product, a little too expensive.
Jerrod777September 11, 2006
Pros
This program has good features, great pictures, and helps to show how a network is setup. Unlike most flowchart programs, it is geared towards networking diagramming which is a plus.
Cons
The price is a little too high for the average user. It would help to bring the cost down, or give out a cheaper or freeware version with some limited usability for smaller networks. I won't spend $50 on the program, and neither will our school.
Summary
Easy to use, demo is limited in spite of statements otherwise.
ComputingTeacherJanuary 29, 2005
Pros
Intuitive interface. <p>Objects obvious. <p>Labelling is easy to do. <p>Linking to different documents is easy to do. <p>Allowed me to quickly diagram a system (20 switches/hubs and 140 plus computers plus 3 servers plus numerous printers) that has no formal documentation in place and scant meaningful data represented in other forms. This will come into my toolkit as soon as the school fronts the money for it.
Cons
In spite of claims that the demo is a full working version with no limitations, there is a limit to the number of hyperlinks you can insert into a document and by reading between the lines of the dialogue box, also on the number of objects embedded in a single document. <p>Free and unfettered should be free and unfettered, not slyly limited in an area where you don't expect most folks to go
Summary
