Editors’ Review

Download.com staff
This SketchUp plugin facilitates direct export of 3D objects to AutoCAD DXF files. It transforms SketchUp geometry into triangular meshes, supporting various DXF object representations for diverse workflows.

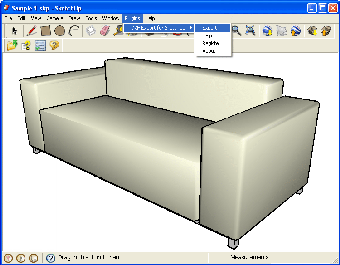

Enlarged image for DXF Export for SketchUp
DXF Export for SketchUp 0/1

  • Pros

    • Exports SketchUp objects to AutoCAD DXF format.
    • Converts geometry into triangular 3D meshes.
    • Supports multiple DXF object types: Polyface, 3D Face, Line, Point.
    • Automatically loads into SketchUp upon installation.
    • Adds dedicated export commands to the Plugins menu.

  • Cons

    • Lacks AutoCAD DXF file import capabilities.
    • Exports all objects as triangular tessellated meshes.
    • Limited to AutoCAD DXF format export.
    • Does not specify material or layer export options.
    • No mention of user control over mesh tessellation.
Icon of program: DXF Export for SketchUp

DXF Export for SketchUp for Windows

Download now

Used DXF Export for SketchUp for Windows?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.0
OPERATING SYSTEMS
Platform
Windows
Operating System
  • Windows 10
  • Windows XP
  • Windows Vista
  • Windows 95
  • Windows 2000
  • Windows 2003
  • Windows 98
  • Windows Server
Additional Requirements
SketchUp 6.0
POPULARITY
Total Downloads
1,581
Downloads Last Week
2
Report Software

Program available in other languages

Last Updated

Developer’s Description

By SYCODE
Export objects from SketchUp into AutoCAD DXF file.

DXF Export for SketchUp is an AutoCAD DXF file export plug-in for Google SketchUp. This plug-in gives SketchUp the ability to export objects in SketchUp to 3d meshes in an AutoCAD DXF file. DXF Export for SketchUp tessellates objects in a SketchUp document into a set of triangular meshes. These meshes are then exported to a DXF file as mesh objects. These meshes can be exported to a DXF file as 3D Polyface Mesh, 3D Face, Line or Point objects. DXF Export for SketchUp is very easy to use. It adds new commands to SketchUp. Once installed, it automatically loads itself into SketchUp and adds a new submenu called "DXF Export for SketchUp" to the SketchUp Plugins menu containing the newly added commands.
