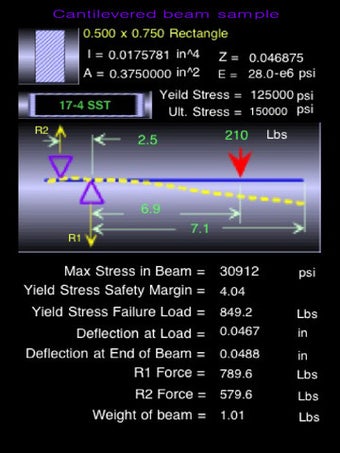

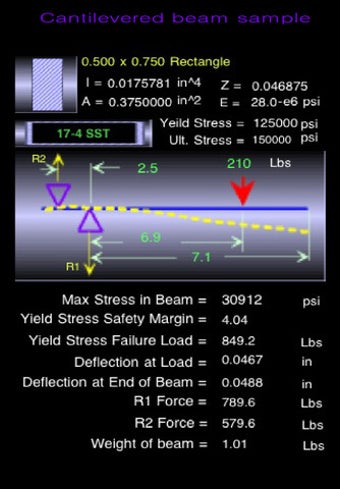

BeamStress is an iPhone application designed to assist engineers and architects in analyzing beam stress and deflection. The app provides a user-friendly interface that allows for quick input of various parameters, including beam length, load types, and support conditions. Users can explore different scenarios and obtain detailed calculations, which can be crucial for structural design and assessment.

Top Recommended Alternative

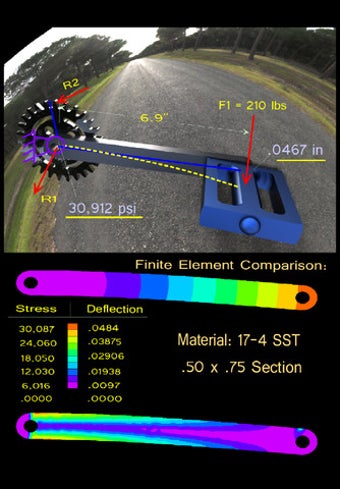

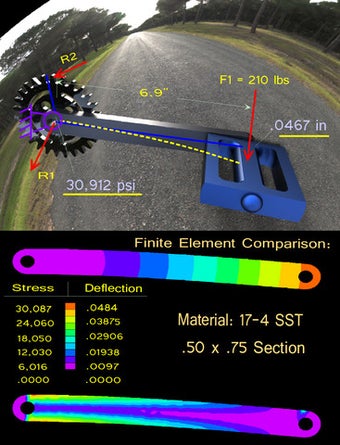

In addition to its core functionality, BeamStress offers features such as graphical representations of stress distributions and deflection curves, enhancing the understanding of beam behavior under different loads. The app supports various unit systems, making it versatile for users across different regions. Overall, BeamStress serves as a valuable resource for professionals in the field of structural engineering and design.

Enlarged image for BeamStress
BeamStress 0/8
Icon of program: BeamStress

BeamStress for iOS

Download now

Used BeamStress for iOS?

Explore More

Full Specifications

GENERAL
Release
Latest update
Version
1.12
OPERATING SYSTEMS
Platform
iOS
Operating System
iOS 12.1.2
Additional Requirements
Compatible with iPhone, iPod Touch, and iPad. Requires iOS 3.1 or later. iTunes account required
POPULARITY
Total Downloads
7
Downloads Last Week
0
Report Software

Last Updated

Developer’s Description

By A. Reschke Design Solutions
When youre away from your FEA workstation, you can continue to work on your design load scenarios with reliable confidence these are some of the...

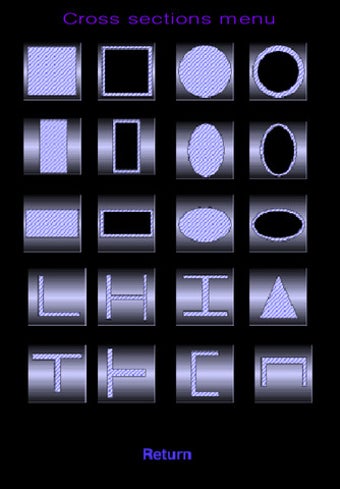

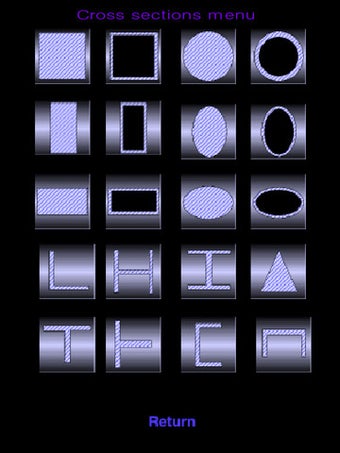

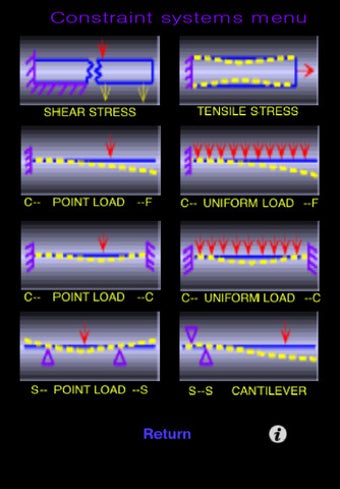

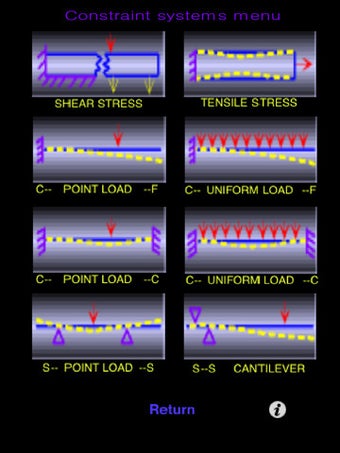

When youre away from your FEA workstation, you can continue to work on your design load scenarios with reliable confidence these are some of the same equations FEA software is based on.The BeamStress app was written with the busy Engineer in mind; the intuitive application interface will be a unique experience for those familiar with the typical tabulated desktop software menus. As youre interacting with BeamStress you will notice your focus will stay on the design problem instead of searching thru menu picks... The static graphic images are the buttons, simply touch the section icon to go to the section menu, select the material icon to go to the materials menu, touch a dimension to edit values, touch the constraint image to go to the constraint menu, etc... It is good practice to enter the dimensions, select return, then select section properties and materials. BeamStress is a powerful engineering resource with 8 constraint systems, 20 cross sections, 19 pre-set materials and 1 custom material type available.Constraint Systems:-) Shear Stress-) Tensile Stress-) Const--- Point Load ---Free-) Const--- Uniform Load ---Free-) Const--- Point Load ---Const-) Const--- Uniform Load ---Const-) Support--- Point Load ---Support-) React Force--- Support ---LoadInformation calculated:-) Max Stress in beam-) Safety margin from Yield Stress-) Max Load limit to reach Yield point-) Deflection at load and/or end of beam-) Reactionary forces (Cantilever System)-) Weight of beam-) Area of cross section-) Moment of Inertia-) Section Modulus-) Yield stress of material-) Tensile stress of material-) Screen capture for collaborative work Materials:-) Structural Steel-) 1018 Steel CR-) 1045 Steel CR-) 1095 Steel CR-) 303 Stainless Steel-) 316 Stainless Steel-) Doug Fir-) Oak-) PC/ABS-) PVC Pipe grade-) 5052 H34 Aluminum-) 6061 T6 Aluminum-) 7075 T6 Aluminum-) Titanium 6AL4V-) 17-4 Stainless Steel-) 416 Stainless Hard-) 420 Stainless Hard-) 4130 Chromalloy Steel-) Zinc ZA-27-) Custom (user programable properties) BeamStress is a fully validated stress analysis application, it includes an FEA comparison as part of that validation work. You will notice the Stress results are with-in 2.7% of the FEA model, the deflection is with-in 3.5%; with results like this you can be confident that your early load analysis work will save you valuable time throughout your project timeline and help you keep the engineering and desgin centered with-in the required system loads.
