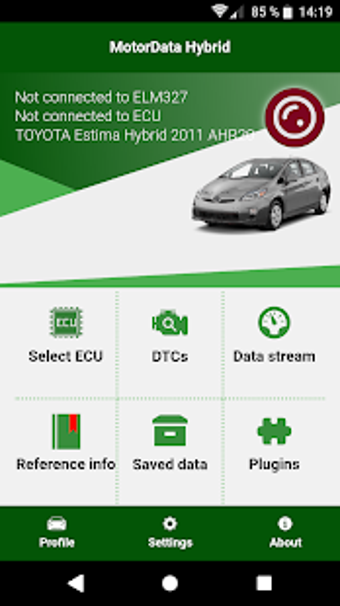

MotorData Hybrid is a Toyota and Lexus Hybrid Car Diagnostic Software operating with the ELM327 adapter via OBD2, EOBD, JOBD protocols. It reads and decodes trouble codes, and allows you to easily turn off the Check Engine light (MIL) after repairs are done. The application will help you to check the condition of the hybrid system, hybrid battery (HB), inverter, gasoline engine, transmission, ABS, SRS, ESP, air conditioning and other systems.

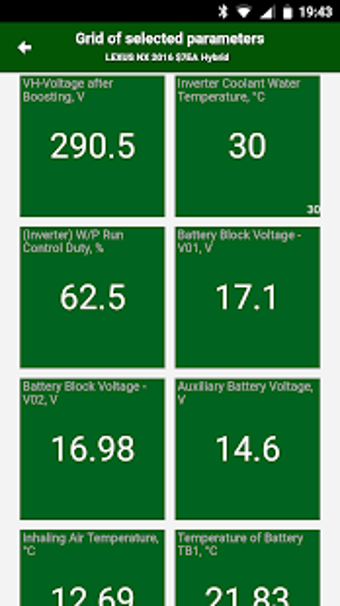

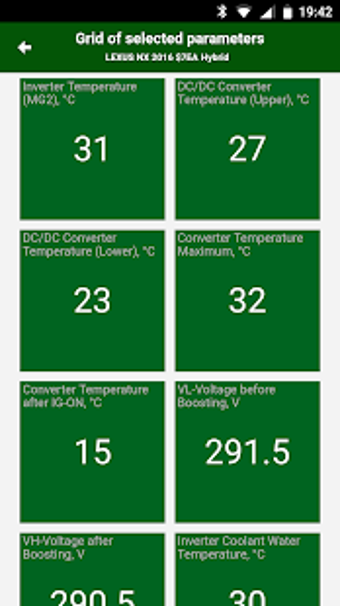

The app allows you to monitor the most important parameters of the HB and inverter:
- HB block temperature TB1-TB4
- Inverter temperature (MG1 MG2)
- Delta SOC
- Battery internal resistance R01-R08
- HB block voltage
It also reads parameters (PIDs) of the engine and brakes. For instance, speed, acceleration, RPM, temperature, pressure, oxygen sensor data, short-term and long-term fuel corrections, torque sensor data, and other parameters available via OBD II.
Any parameter changes can be visualized on the real-time charts
PID monitoring will help you to react to an abnormal situation in time and avoid costly repair of the hybrid powertrain system

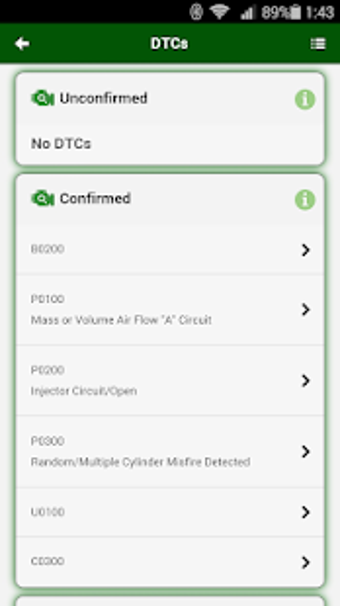

The program supports Reading/Erasing DTCs along with reading Freeze Frames (DTC fault OBD2, error scanner, elmscan Toyota)
It has an inbuild reference of P0- and P2- trouble codes with its interpretation.
Most of the app functionality described above is available after purchasing 'Toyota (Lexus) + Hybrid' plugin, which can be found in the 'Plugins' section of the app. Prior to buying a plugin, we recommend that you test the App and the compatibility of your ELM327 adapter with your car and smartphone in free mode. If compatible, all supported control units and parameters will be displayed but some values will be closed with ## until the plugin is purchased.
Use the ELM327 auto scanner and become doctor Prius, doctor Hybrid right now!
The 'Reference' section contains paid descriptions of Toyota (Lexus) Hybrid Car Warning lights and Indicators. There are descriptions of 147 unique lights operation. You will learn what these dashboard lamps mean and get recommendations on what to do when they are lit. Serving your Toyota Prius, Toyota Camry Hybrid, Toyota Harrier Hybrid, Toyota Estima Hybrid and other hybrids will be easier.
SUPPORTED TOYOTA AND LEXUS MODELS
Corolla Axio 2012-
Corolla Fielder 2012-
Prius a 2011-
Prius c 2012-
Prius PHV 2012-2016
Prius PHV 2017-
- ELM327 Bluetooth, Bluetooth mini, WiFi
Correct operation of the App with some ELM327-based adapters v2.1 made in China is not guaranteed, because these interfaces may not work properly. Sometimes non-functional adapters v2.1 are sold under the guise of version 1.5. In this case, there may be errors when connecting to the car or incorrect data output.
Your feedback is always welcome and lets us drive the application development. Feel free to contact us by email firstname.lastname@example.org or send logs to technical support right from the app. Specify make, model and year of your car.
To get professional information on diagnostics of Japanese, Korean, Chinese and Russian cars, please check out our online information system http://motordata.net
