Developed Section For AutoCAD

By RCAD Software Free to try

Key Details of Developed Section For AutoCAD

  • Determine the unfolded section of one set of 3DSOLID, 3DMESH or 3DFACE entities and vertical planes
  • Last updated on 09/29/20
  • There has been 1 update within the past 6 months
  • The current version has 0 flags on VirusTotal badge_icon

Developer's Description

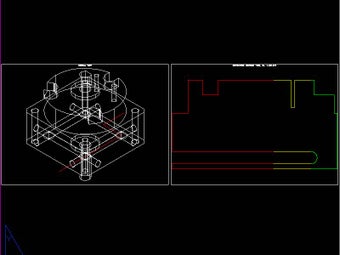

An add-on for AUTOCAD 2002-2020 or BricsCAD V14-V20, which determines the unfolded section of one set of 3DSOLID, 3DMESH or 3DFACE entities and vertical planes passing through a 2D POLYLINE which may contain arcs, in XOY plane. Developed section is generated in the vertical plane passing through first segment of POLYLINE. The intersection is generated in the form of 3DPOLY entities, colored from 1 to 1, beginning with the color 1, corresponding to every vertical plane. The result is automatically generated in viewports ready for printing. You can set also the "concatenation precision" of the segments of intersection.

Full Specifications

What's new in version 1.7d

General

Release September 29, 2020
Date Added September 29, 2020
Version 1.7d

Operating Systems

Operating Systems Windows 10, Windows 8, Windows Vista, Windows, Windows 7, Windows XP
Additional Requirements AutoCAD 2002-2020 or BricsCAD V14-V20
