iCircuit for Windows 10 logo

iCircuit for Windows 10

By Krueger Systems $4.99
The Download Now link directs you to the Windows Store, where you can continue the download process. You must have an active Microsoft account to download the application. This download may not be available in some countries.

Developer's Description

iCircuit is the easy to use electronic circuit simulator and designer - the perfect tool for students, hobbyists, and engineers.

Its advanced simulation engine can handle both analog and digital circuits and features realtime always-on analysis. It is the perfect companion to students, hobbyists, and engineers.

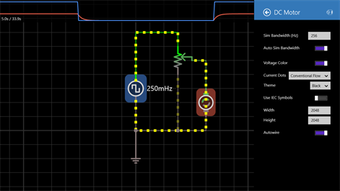

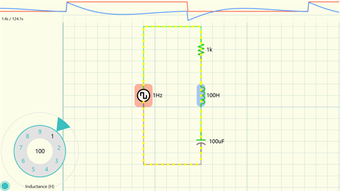

You use it as you would any CAD program: you add elements, connect them together, and set their properties.

But iCircuit is unlike other CAD programs because it is always simulating. It's just like working with the real circuit. You do not stop to take a measurement or spend a lot of time configuring reports. Instead, you just play with the circuit as you normally would, with the power on!

There are over 30 elements you can use to build your circuits. The app has everything from simple resistors, to switches, to MOSFETs, to digital gates.

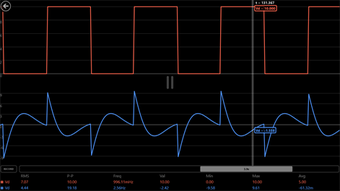

The app features a multimeter that you use to probe around the circuit to instantly read voltages and currents. If you want to see how a value changes over time, then you can add values to the built-in oscilloscope. The scope can simultaneously track many signals over time and features a touch interface to control the total time displayed and stacked and unstacked modes to easily compare signals.

Supported elements include:

Signal generators, Voltage sources, and Current sources

Resistors, Capacitors, and inductors

Manual SPST/SPDT Switches, and SPST/SPDT relays

Diodes, LEDs, BJ Transistors, and MOSFETs

ADCs, and DACs

Logic gates: AND, OR, NAND, NOR, XOR

JK and D Flip-flops

And much more...

Full Specifications

What's new in version 1.0.0.4

General

Release May 15, 2018
Date Added March 1, 2018
Version 1.0.0.4

Operating Systems

Operating Systems Windows, Windows 10
Additional Requirements Available for Windows 10, Windows 8.1 (x86, x64)

Popularity

Total Downloads 124
Downloads Last Week 2
