HVAC Pipe Sizer - Steam logo

HVAC Pipe Sizer - Steam for iOS

Developer's Description

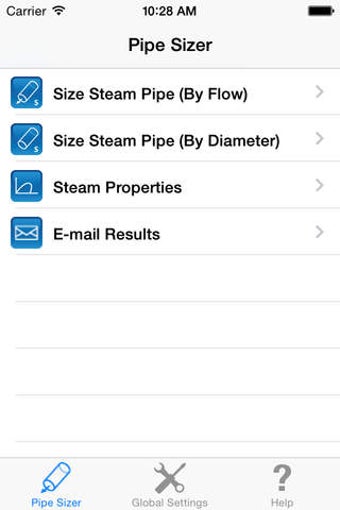

The "HVAC Pipe Sizer - Steam" application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties.This app is now a universal app meaning that it works on both the iPhone and iPad and adjusts its screen size accordingly.It also includes a bonus steam table calculator that allows you to specify 2 parameters for either saturated or superheated steam and display the remaining steam properties. In the pipe sizing module, you can specify the total steam flow in lbs/hr (or kgs/hr), the initial steam pressure (psia or psig) and one of either pressure loss (psi/100ft), pipe internal diameter (inches) or steam velocity (ft/s) parameters. The results include both the exact and nominal pipe diameters and the calculated velocity and total pressure loss. If you are analyzing an existing steam pipe system, there is an option to input the existing pipe internal diameter, initial steam pressure and one of either pressure loss or steam velocity parameters to derive the calculated steam flow and other remaining properties.You can specify additional parameters such as whether the steam is saturated or superheated (with accompanying temperature), the pipe material type, the total length of pipe, quantities for up to 11 different types of pipe fittings, and much more. You can also choose to display values in either english or metric units.The bonus steam table module is one-of-a-kind. It allows you to easily view results by selecting a variety of input parameters and easily altering these inputs using the slider control. This is perfect for students who often rely upon the more static printed steam tables in engineering text.This application includes built-in pipe fitting equivalent length and nominal pipe sizing tables for a wide variety of pipe material types and diameters.This application uses slider controls that allow you to quickly increment or decrement the input values and immediately observe the calculated results. You can also manually input exact values.This app now includes the HVAC Equipment Locator. Click here for details: http://bit.ly/1yTq539 This application was designed by Carmel Software Corporation, a leader in HVAC design software since 1995. In fact, Autodesk (the makers of AutoCAD) acquired our load calculation software and incorporated it into their leading 3D modeling software called Revit. We also offer the following additional applications for the iPhone/iPad:1. HVAC Duct Sizer2. HVAC Pipe Sizer Gas Low Pressure3. HVAC Pipe Sizer - Gas High Pressure4. HVAC Pipe Sizer Liquid5. HVAC Pipe Sizer Steam6. Steam Tables7. Psychrometric Plus8. Psychrometric LT9. HVAC Pipe Sizer Plus10. HVAC Pipe Sizer Gas Plus11. HVAC Toolkit12. HVAC Toolkit Ultimate13. HVAC Residential Load Calcs14. HVAC Load Plus15. HVAC Equipment Locator16. ASHRAE Duct Fitting Database17. ASHRAE 62.1 Ventilation Load Calcs18. HVAC Psych HD19. HVAC ResLoad-J20. HVAC Residential Load Calcs HD

Full Specifications

What's new in version 2.3

1. Includes HVAC Equipment Locator module that allows you to keep track of all of your equipment and store in the cloud.2. Updated icons and help

General

Release June 10, 2016
Date Added June 10, 2016
Version 2.3

Operating Systems

Operating Systems iOS
Additional Requirements Compatible with: iphone3gs, iphone3gs, iphone4, iphone4, ipodtouchfourthgen, ipodtouchfourthgen, ipad2wifi, ipad2wifi, ipad23g, ipad23g, iphone4s, iphone4s, ipadthirdgen, ipadthirdgen, ipadthirdgen4g, ipadthirdgen4g, iphone5, iphone5, ipodtouchfifthgen, ipodtouchfifthgen, ipadfourthgen, ipadfourthgen, ipadfourthgen4g, ipadfourthgen4g, ipadmini, ipadmini, ipadmini4g, ipadmini4g

Popularity

Total Downloads 274
Downloads Last Week 0
