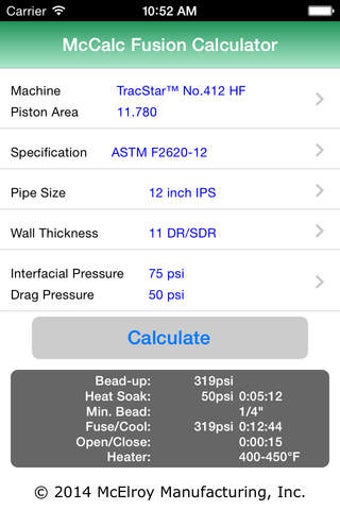

The McCalc Fusion Pressure Calculator is designed to help you quickly find the correct fusion pressure for your job.To properly heat-fuse polyethylene pipe, the fusion pressure must be adjusted so the pipe manufacturer's recommended interfacial pressure is achieved.McCalc takes the guesswork out of HDPE pipe fusion. By selecting your McElroy fusion machine and entering your pipe size and pressure requirements, the recommended theoretical gauge pressure may be calculated.McCalc offers the following features:- Easy selection of any of McElroy's hydraulic fusion machines.- Pipe size entry in IPS, DIPS, O.D., or JIS units.- Wall thickness entry using the pipe's dimensional ratio or actual wall thickness.- Interfacial pressure and drag pressure entry in units of psi, bar, kg/cm, or MPa.- Quick "Learn to Calculate" tutorial gives you step-by-step help to manually calculate fusion pressure if needed.
What's new in this version:
Updated DIPS pipe sizes.
