Use Case Design for iOS

Developer's Description

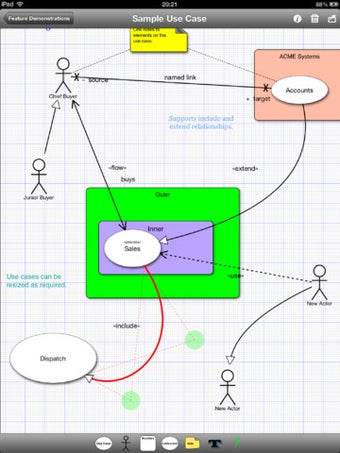

UseCase Design is a UML Use Case Diagramming tool which enables you to produce quick and easy diagrams for the iPad and publish them via email (as png or pdf) or print to compatible printers.Build up your system context by adding your Use Cases and Actors - grouped within boundaries if required, drag elements around the diagram to reposition, annotating the diagram with rich text content or linking notes to elements. Attach stereotypes from the pre-defined list or define your own.Select elements and drag and drop edge connectors to other elements to create relationships between them. Context sensitive features let you select the type of relationship required between the elements such as generalizations or associations. Tapping on elements brings up the detail editor which lets you change or add additional features as required. Drag elements around the screen and see the relationships update in real-time.Publish via email as either png or pdf or print where compatible printers are available.For a full overview of supported features including detailed screenshots and help content see http://www.plumhead-software.com/useCaseDesign/featuresCheckout our other AppStore applications, including Touch Design for additional diagramming types.

Full Specifications

What's new in version 1.3.0

- Updated element resizing to improve usability- Added ability to draw curve element connections- Improved line connection point dragging- Added magnifying view for dragging link anchors- Minor UI changes & performance enhancements- Bug fixes include-- Restricted ability to create elements off the editing page-- Now able to correctly delete text elements from diagrams-- Association names can be cleared correctly

General

Release June 1, 2013
Date Added June 1, 2013
Version 1.3.0

Operating Systems

Operating Systems iOS
Additional Requirements Compatible with iPad. iTunes account required.

Popularity

Total Downloads 6
Downloads Last Week 0
