SQ-MixPad allows control of an SQ console over a wired or wireless network.
It can be used simultaneously and independently of the SQ surface, so it provides supplementary local control as well as giving the engineer the freedom to move around and mix from different listening positions.
Two devices running SQ-MixPad can be connected and used at the same time as using the SQ surface, giving three separate points for control of all mixes.
The Offline mode also allows for SQ show files to be edited and managed without connection to a console.
This version works with SQ consoles running firmware V1.4.x
It provides the following:

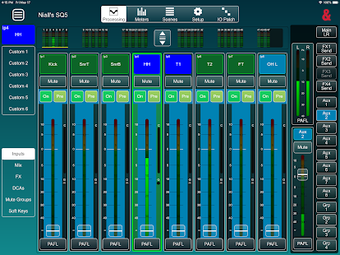

Level Control -
Send levels, panning, assignments, pre/post settings and mutes from all channels to all mixes
Master send levels for all mixes
Send and Return levels for FX
DCA and Mute Group control, including assignments
Per channel routing overview
Processing Control -

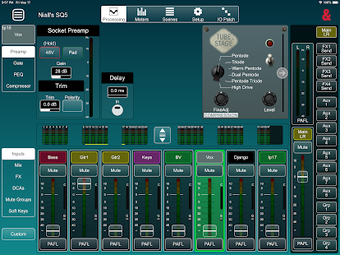

Input channel Preamp/DEEP Preamp Model/HPF/Gate/PEQ/Compressor
Mix channel Ext In/GEQ/PEQ/Compressor
DEEP compressors and GEQs
FX Parameters and FX Return PEQ

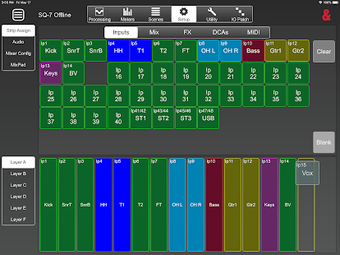

Full patching matrix for Inputs/Outputs and Tie Lines
1-to-1 diagonal block patching
Edit and manage shows and scenes without a console connection
Transfer entire shows between MixPad and an SQ
Factory Processing Libraries
Other features include
Works with SQ User Permissions
Full control of Signal Generator and assignments
6 custom layers with the ability to copy desk layers
All input/output/processing metering and RTA
Global filter and channel safe control
Mixer config and role setup including Listen Level
PAFL setup and selection
SoftKey and MIDI strips setup and use
Follow Channel/Mix Select option
