Point Cloud for AutoCAD

By SYCODE Free

Developer's Description

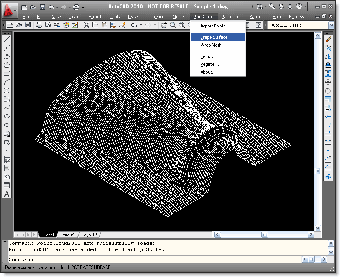

Point Cloud for AutoCAD is a reverse engineering plug-in for AutoCAD. This plug-in gives AutoCAD the ability to reconstruct the geometry of an object from a point cloud which describes it. Point Cloud for AutoCAD can drape a surface over a point cloud or wrap a mesh around a point cloud. Draping a surface is similar to laying a piece of cloth over an object. The surface is deformed to take the shape of the object along the drape direction. A surface can be draped along one of the six orthogonal directions (top, bottom, front, back, right and left) or a custom user specified direction. Wrapping a mesh is similar to wrapping cloth all around an object to close it completely. Point Cloud for AutoCAD has the ability to wrap a mesh around a concave or a convex point cloud. Point Cloud for AutoCAD is designed to be extremely user friendly and easy to understand. It adds new commands to AutoCAD and also a sub menu called "PointCloud" which houses these commands. The Point Cloud for AutoCAD consists of the following menus: Help PCImportPoints - Imports a point cloud from a text file PCDrapeSurface - Drapes a surface over a set of a point cloud PCWrapMesh - Wraps a mesh around a point cloud PCHelp - Displays the Point Cloud for AutoCAD help file PCRegister - Registers your copy of Point Cloud for AutoCAD PCAbout - Displays the Point Cloud for AutoCAD about box

Full Specifications

What's new in version 1.0

General

Date Added November 19, 2009
Version 1.0

Operating Systems

Additional Requirements AutoCAD 2000 and above

Popularity

Total Downloads 1,135
Downloads Last Week 1
Report Software
