LadderTouchLite for iOS

By Motonari Hibi Free

Developer's Description

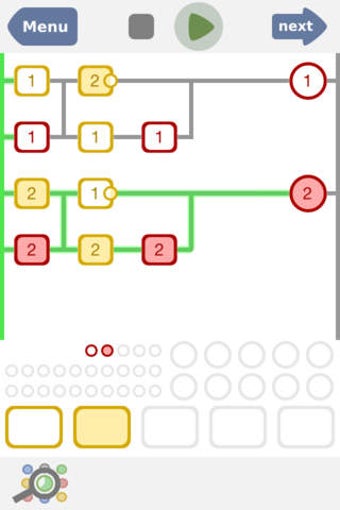

LadderTouchLite is application to learn the rudiments of Ladder Logic which is graphic program language.This app has two functions.You can learn the mechanism by executing some prepared samples.And you can check your understanding.differences from full versionNote(editing ladder) mode isn't in.---------------ELEMENTS---------------input(yellow)max 5 elements.controll input signal by tapping button on bottom of display.vertual output(red)max 5 elements.inner memory(gray)max 20 elements.vertual output(red) and inner memory(gray) are same at logical behavior.but difference is in how to use. vertual output is for last element of ladder logic chain.inner memory is for process element of ladder logic chain.this is imitation of real ladder logic that have output devices.timer(blue)max 5 elements.set from 0.1sec to 10.0sec setting unit is 0.1sec. timer is 'on delay' only.this app does not include 'off delay'.This is on delay. ---++++++++++ sourse(rectangle) -------++++++ destination(circle)This is off delay. +++---------- sourse ++++++++----- destination+ON -OFFtime flows left to rightcounter(green)max 5 elements.set form 1 to 50there is NO counter reset element in my app.(many another ladder logic software have)how to reset counter is to stop running Ladder.all element can inverse on source area(rectangle elements area).but on destination area(circle elements area),input,output and inner memory can inverse,and timer and counter can't do,becouse it is difficult to understand that timer and counter's inverse logic on destination area.--------------another--------------there is no function that connect to outer devices.

Full Specifications

What's new in version 1.3.6

miner bug fix


Release June 10, 2016
Date Added June 10, 2016
Version 1.3.6

Operating Systems

Operating Systems iOS
Additional Requirements Compatible with: iphone3gs, iphone3gs, iphone4, iphone4, ipodtouchfourthgen, ipodtouchfourthgen, ipad2wifi, ipad2wifi, ipad23g, ipad23g, iphone4s, iphone4s, ipadthirdgen, ipadthirdgen, ipadthirdgen4g, ipadthirdgen4g, iphone5, iphone5, ipodtouchfifthgen, ipodtouchfifthgen, ipadfourthgen, ipadfourthgen, ipadfourthgen4g, ipadfourthgen4g, ipadmini, ipadmini, ipadmini4g, ipadmini4g


Total Downloads 29
Downloads Last Week 0
