GstarCAD Architecture

By Gstarsoft Free to try

Developer's Description

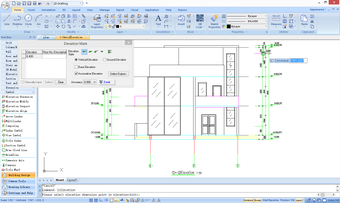

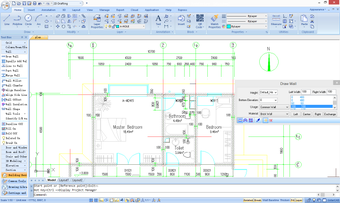

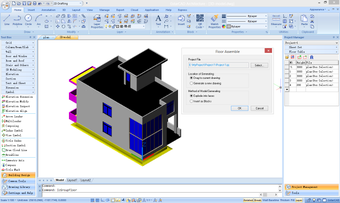

GstarCAD Architecture(GCA) supplies custom object technology for creating professional architecture objects, such as walls, columns, win-doors, floor slabs, stairs, roofs, and so on. More efficient for architecture design and drafting. 1. Pull-down Toolkit covers various kinds of functions. 2. Parametric architecture components, like different types of walls, doors, windows etc. are available to choose from. 3. Intelligent and smart operation to improve work efficiency. 4. Automatically-generate Elevation and Section. 5. Provide professional annotation tools: architecture dimension and symbols. 6. Export and import door/window tables to word or excel files. 7. Comprehensive architecture Drawing Library. 8. Convenient site plan function. 9. Multiple drawing units and dimension units support, including m, dm, cm, mm. 10. Scale adjustment function - scale between the symbol, dimension, text and the drawing can be automatically adjusted as per your needs. Other highlights: 1. DWG, DXF compatible, can save or open versions of R12,R14,2000~2013. 2. Generate 3D Architecture module. 3. Flexible BOM list, enhanced drawing layout function. 4. More outstanding features for you to explore.

Full Specifications

What's new in version 2018

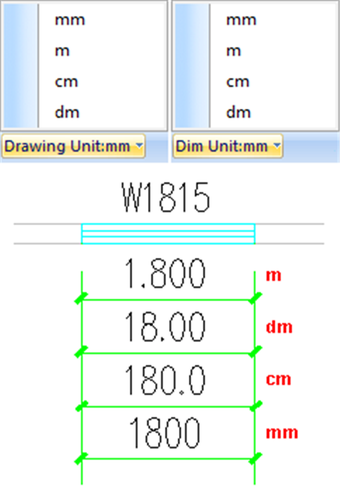

  • Multiple drawing units and dimension units support, including m, dm, cm, mm.

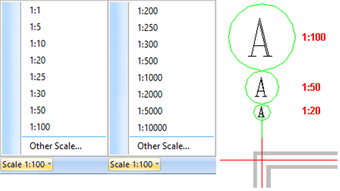

  • Scale adjustment function - scale between the symbol, dimension, text and the drawing can be automatically adjusted as per your needs.

General

Release July 9, 2018
Date Added July 8, 2018
Version 2018

Operating Systems

Operating Systems Windows 10, Windows 8, Windows Vista, Windows, Windows 7, Windows XP
Additional Requirements None

Popularity

Total Downloads 672
Downloads Last Week 3
