Developer's Description

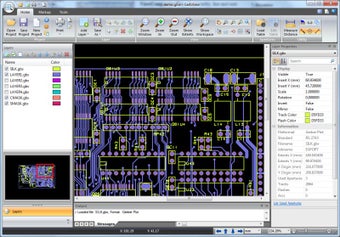

GerbView is an application that enables you to view, print, convert, and markup Gerber, HPGL/2, Excellon, PDF and raster files. GerbView supports both RS274D and RS274X Gerber formats. You can use GerbView to convert from the old RS274D Gerber standard to the new RS274X with embedded aperture information. Gerbview will visualize your design, on the screen or in hardcopy. In GerbView you work with a workspace that can contain one or more files of the supported file formats. The workspace can be saved for later use. The saved workspace will link to your design files, so only need to reload the workspace file to see the whole design. Features include rotate added files by any angle, copy selected region to clipboard and paste into another Windows application, user defined header and footer for printing, scaled print or fit to paper, full mode print preview, poster mode for printing big format drawings, and add markup using lines, text, rectangles, images, polygons, arrows, and ellipses. These markups elements can be "burned-in" to be part of a Gerber layer. With the builtin PDF to CAD function you can convert your PDF files to Gerber or Autodesk DXF.

Full Specifications

What's new in version 7.68

Version7.68:
  • Added RS-274D (legacy Gerber) as output format.
  • Mirror and flip do now work for HPGL/2 plotter files.
  • Added a new option for converting multiple layers into a multi-page PDF, DWF or PLT file.
  • Added WebP image format to the list of available output formats in the Save to Bitmap dialog.
  • Several bug fixes.

General

Release October 3, 2017
Date Added October 3, 2017
Version 7.68

Operating Systems

Operating Systems Windows 10, Windows 2003, Windows 8, Windows Vista, Windows, Windows Server 2008, Windows 7, Windows XP
Additional Requirements None
