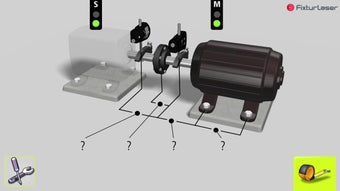

This is a companion app for performing shaft alignment, using the Fixturlaser Laser Kit, on typical applications such as a motor and a pump. The app guides the user through the complete measurement and alignment process when using the Bluetooth connected Fixturlaser Laser Kit measurement heads. Together this simplifies the otherwise cumbersome tasks such as calculations and determination of directions and the amount to move the machine to achieve a perfect alignment. Shaft alignment has never been easier.
---- Note: This app works only with the Fixturlaser Laser Kit ----
- Connected using Bluetooth
- Intuitive user interface, all symbols and graphics - no text

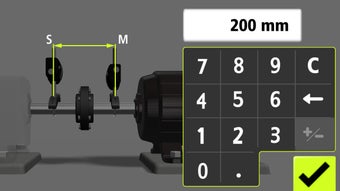

- Work with either metric or imperial dimensions (mm or inch)
- Automatic pairing with the Fixturlaser Laser Kit measurement heads
- VertiZontal: adjust the machine both vertically and horizontally without re-measuring
- Saves the measurement result to your camera roll
Visit the website www.alignmentknowledge.com for more information on alignment in general, the Fixturlaser Laser Kit and support of the app.
Soft foot function
- Warm up the system for 10 minutes before measuring.
- When values are displayed, loosen the bolt of the foot indicated, wait approximately 5 seconds, then fasten the bolt.
- Repeat for all 4 feet.
Live adjustment in the vertical direction
- Go to live adjustment and position sensors at 12 o'clock.
- Untick the inclinometer box in the tools menu.
- You can now use the system vertically or on slant beds.
More information: www.alignmentknowledge.com
