TransLT

By CADWARE Engineering Free to try
Clicking on the Download Now (Visit Site) button above will open a connection to a third-party site. Download.com cannot completely ensure the security of the software hosted on third-party sites.

Developer's Description

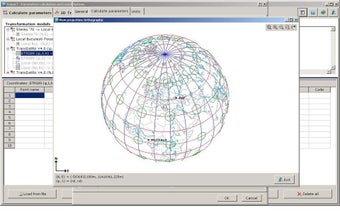

TransLT is designed to calculate the transformation parameters and the transformation of coordinates between two coordinates systems in a fast and practical way. To make it easy to operate with the multitude of existing reference coordinates systems, TransLT contains a module that extracts information from EPSG database. The program interface is intuitive, easy to use, the data can be imported from txt or csv files, and it allows saving the modification for each step of the transformation. TransLT is an application which offers the following three major functionalities: - the calculation of transformation parameters between two coordinates systems; - the transformation of coordinates between two coordinates systems; - drawing of polygons, paths or points in Google Earth. The calculation of transformation parameters between two coordinates systems can be performed in the following situations: - 1D transformation (calculation with 5 or 1 parameters); - 2D transformation (calculation with 4, 5 or 6 parameters); - 3D transformation (calculation with 7, 8, 9, 10 or 12 parameters). For each set of calculated parameters calculation reports are generated offering the user information about the quality of the calculated values. The transformation of coordinates between two coordinates systems can be done by applying 1D, 2D or 3D transformation or by applying a multiple transformation in steps. The steps of a multiple transformation can be used to make the following coordinates operations: - coordinates conversions (including using a map projection); - polynomial transformations; - transformations using grid files (files containing corrections values); - transformations with parameters: 1D, 2D or 3D; - transformations with user defined formula. The multiple step transformations (which contain many successive transformations) can be saved and used later, with the possibility of applying them directly on a file using the contextual menu from Windows Explorer. Supported conversions: - Geographical coordinates to Geocentric cartesian coordinates (X, Y, Z); - Geocentric cartesian coordinates (X, Y, Z) to Geographical coordinates; - Geographical coordinates to Plane coordinates (N, E) according to the selected projection; - Plane coordinates (N, E) to Geographical coordinates according to the selected projection.

Full Specifications

What's new in version 2.0

Version 2.0 has added three more map projections: Krovak Oblique Conformal Conic Modified - EPSG method code 1042; Krovak Oblique Conformal Conic Modified (North Orientated) - EPSG method code 1043; Mercator (2SP) (Variant C) - EPSG method code 1044 and two more types of GRID files: Grid file of geoidal model type OSGM02; Grid file type OSTN02/OSGM02 - EPSG method codes 9633 and 9663.

General

Release January 13, 2011
Date Added January 13, 2011
Version 2.0

Operating Systems

Operating Systems Windows 2000, Windows Vista, Windows, Windows 7, Windows XP
Additional Requirements None

Popularity

Total Downloads 300
Downloads Last Week 0
