Process to Signal For iPad for iOS

By Status Instruments LtdFree

Key Details of Process to Signal For iPad

  • Status Instruments free App for converting a process signal value, in any engineering unit, into a control signal in milli amps, milli volts, or...
  • Last updated on 4/15/2016
  • There have been 5 updates
  • Virus scan status:

    Clean (it's extremely likely that this software program is clean)

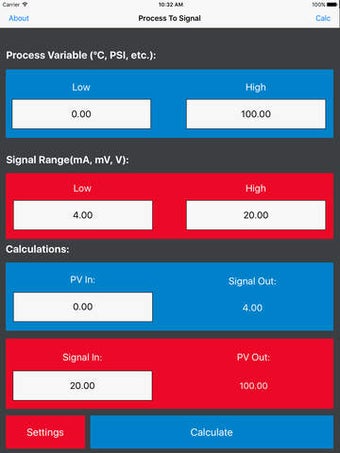

Enlarged image for Process to Signal For iPa…

Developer's Description

By Status Instruments Ltd
Status Instruments free App for converting a process signal value, in any engineering unit, into a control signal in milli amps, milli volts, or...
Status Instruments free App for converting a process signal value, in any engineering unit, into a control signal in milli amps, milli volts, or volts.For use in temperature measurement, process control, and signal conditioningThe input engineering range and output signal range are entered into the calculator.Typical use would be for a control or alarm system monitoring the temperature in a vessel. A temperature transmitter would be used to generate a mA signal to represent C.ExampleInput range in engineering units (0 to 100)C ; output signal range (4 to 20) mA [sometimes given as 4-20mA]A point input value can entered in C and the corresponding output signal value in mA calculated.An output signal value in mA can entered and the corresponding input temperature in C calculatedTypical engineering unitsinH2, inHg, ftH2O, mmH2O, mmHg, psi, bars, mbar, g/sqcm, kg/sqcm, Pa, KPa, Torr, Atmosph, Cuft/min , gal/min, L/min, Impgal/min, Cum/h, ft/s, m/s, gals/s, MMgal/d, L/s, ML/d, Cuft/s, Cuft/d, Cum/s, Cum/d, Impgal/h, Impgal/d, Deg C, Deg F, Deg R, Kelvin, Mv, ohms, Hz, mA, gal, L, Impgal, Cum, Ft, M, Bbl, In, Cm, Mm, Min, S, H, D, cSt, cP, uMho, %, V, pH, g, kg, Met Ton, Lb, STon, LTon, mS/cm, uS/cm,N, Nm, g/s, g/min, g/h, kg/s, kg/min,kg/h,kg/d, Met Ton/min, Met Ton/h, Met Ton/d, lb/s, lb/min, lb/h, lb/d, STon/min, STon/h, STon/d, LTon/h, LTon/d, Datherm, SGU, g/Cucm, kg/Cum, lb/gal, lb/Cuft, g/mL, kg/L, g/L, lb/Cuin, STon/Cutd, degTwad, degBrix, degBaum hv, degBaum lt, degAPI, % sol-wt, % sol-vol, degBall, proof/vol, proof/mass, bush, Cuyd, Cuft, Cuin, in/s, in/min, ft/min, deg/s, rev/s, rpm, m/h, NmlCum/h, NmlL/h, StdCuft/min, bbl(liq), Cuft/hr, Cum/min, bbl/s, bbl/m, bbl/h, bbl/d, gal/h, impgal/s, L/h, Ppm, Mcal/h, Mj/h, Btu/h, Deg, Rad, inH2O @ 60C, ug/L, ug/Cum,%Cs, Vol%, % Stm Quad, ft.in 16, Cuft/Lb, pF, mL/L, uL/L, % plato, % LEL, Mcal, KO, MJ, Btu, NmlCum, Nm/L, StdCuft, Ppb, gal/d, hL, MPa, inH2O @ 4C, mmH2O @ 4C, & uV.Note: the values represent ideals, no tolerances have been applied and no allowances for input source errors, or output measurement equipment errors have been used.

Explore More

Full Specifications

GENERAL
Release
November 12, 2015
Latest update
April 15, 2016
Version
1.0
OPERATING SYSTEMS
Platform
iOS
Operating System
iOS 12.1.2
Additional Requirements
Compatible with . iTunes account required.
POPULARITY
Total Downloads
6
Downloads Last Week
0
